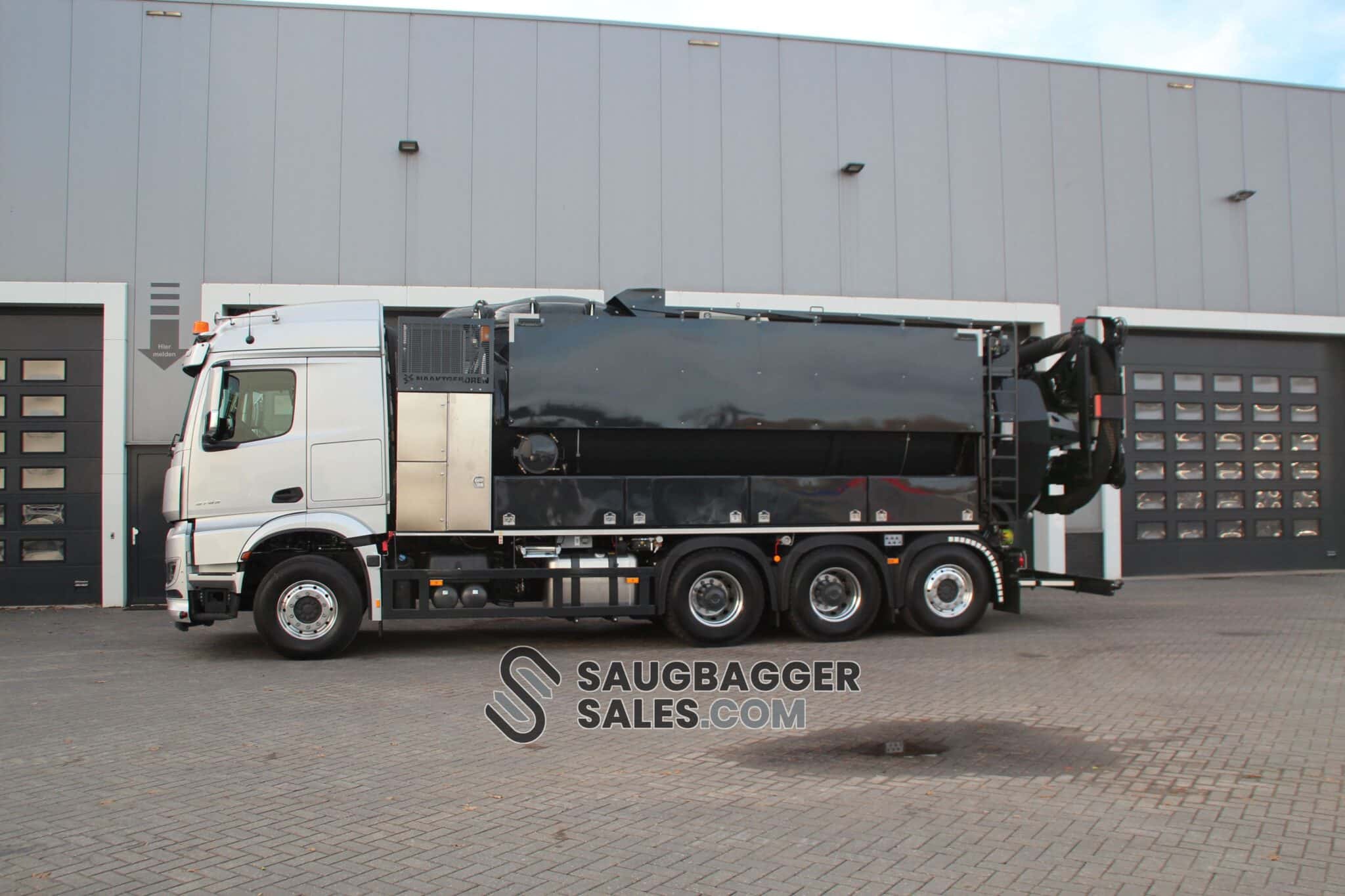

Mercedes-Benz NAAKTGEBOREN Vacu-Press Suction Excavator
Year of manufacture: 11-2025
Mileage: 1,500 km
Vacuum pump operating hours: 5

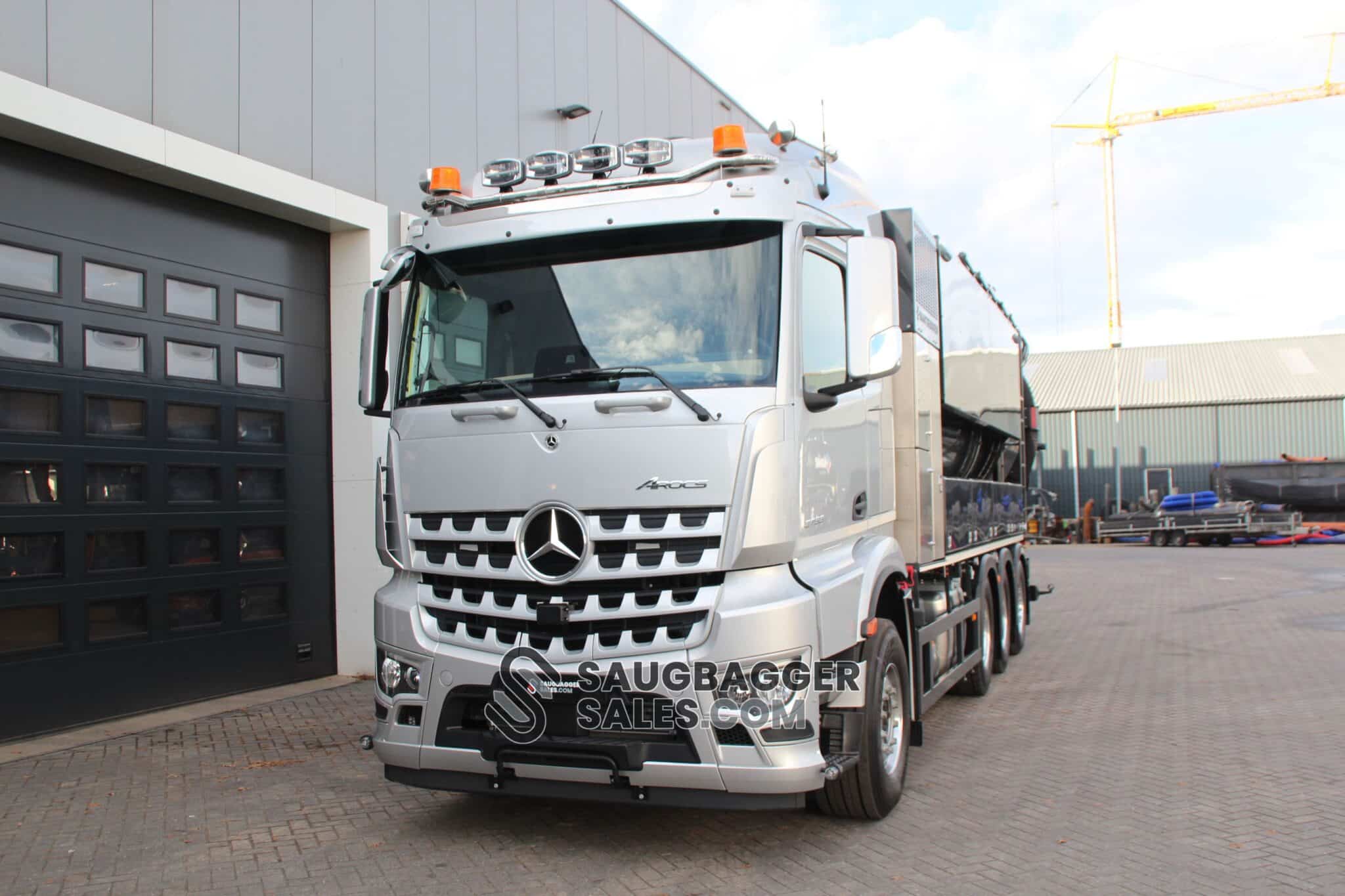

Chassis
-
Brand: Mercedes-Benz
-
Model: Arocs 5 3553 L 8×4
-
Engine: 390 kW / 530 hp
-
Wheelbase: 4200 mm
-

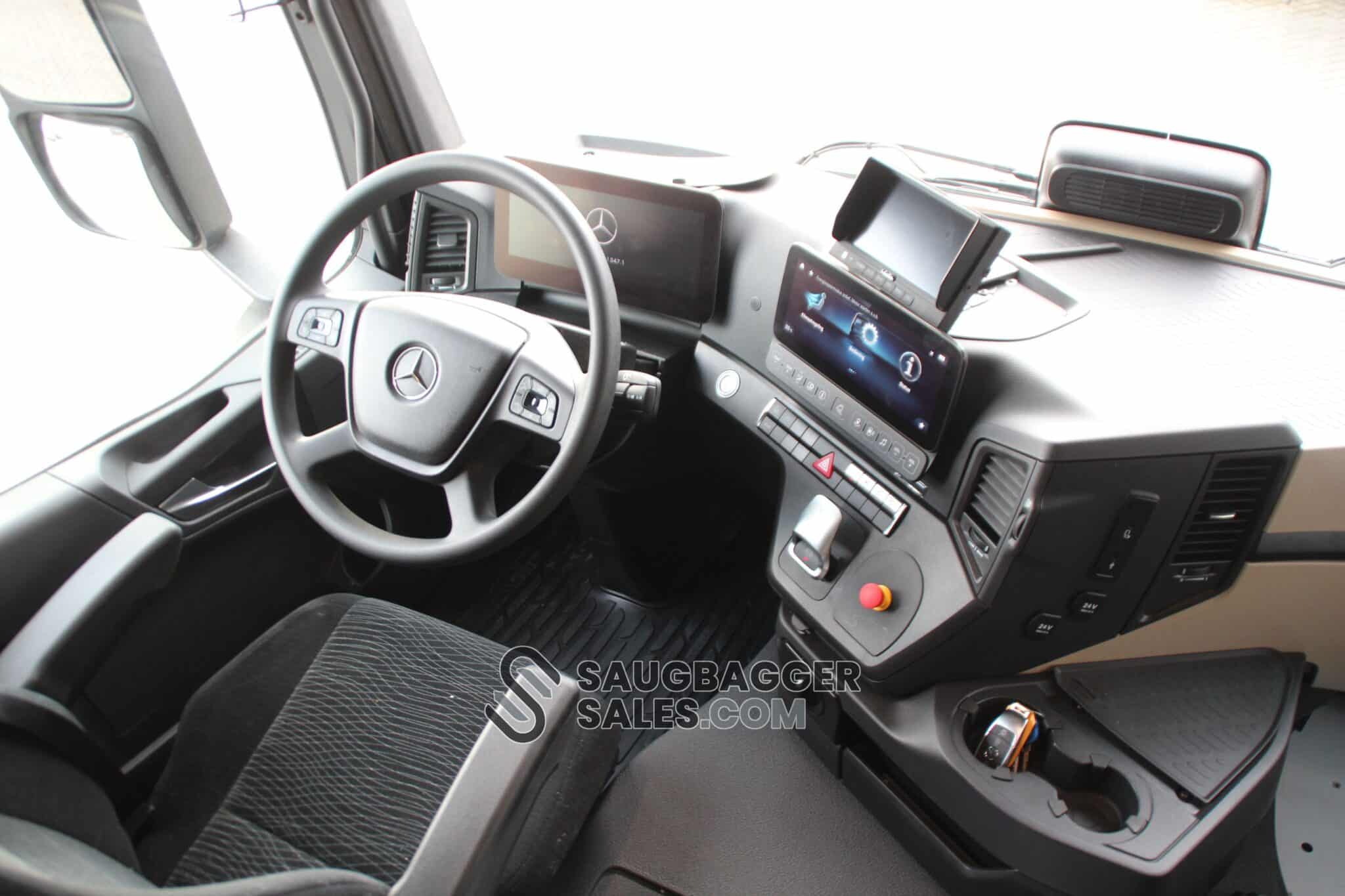

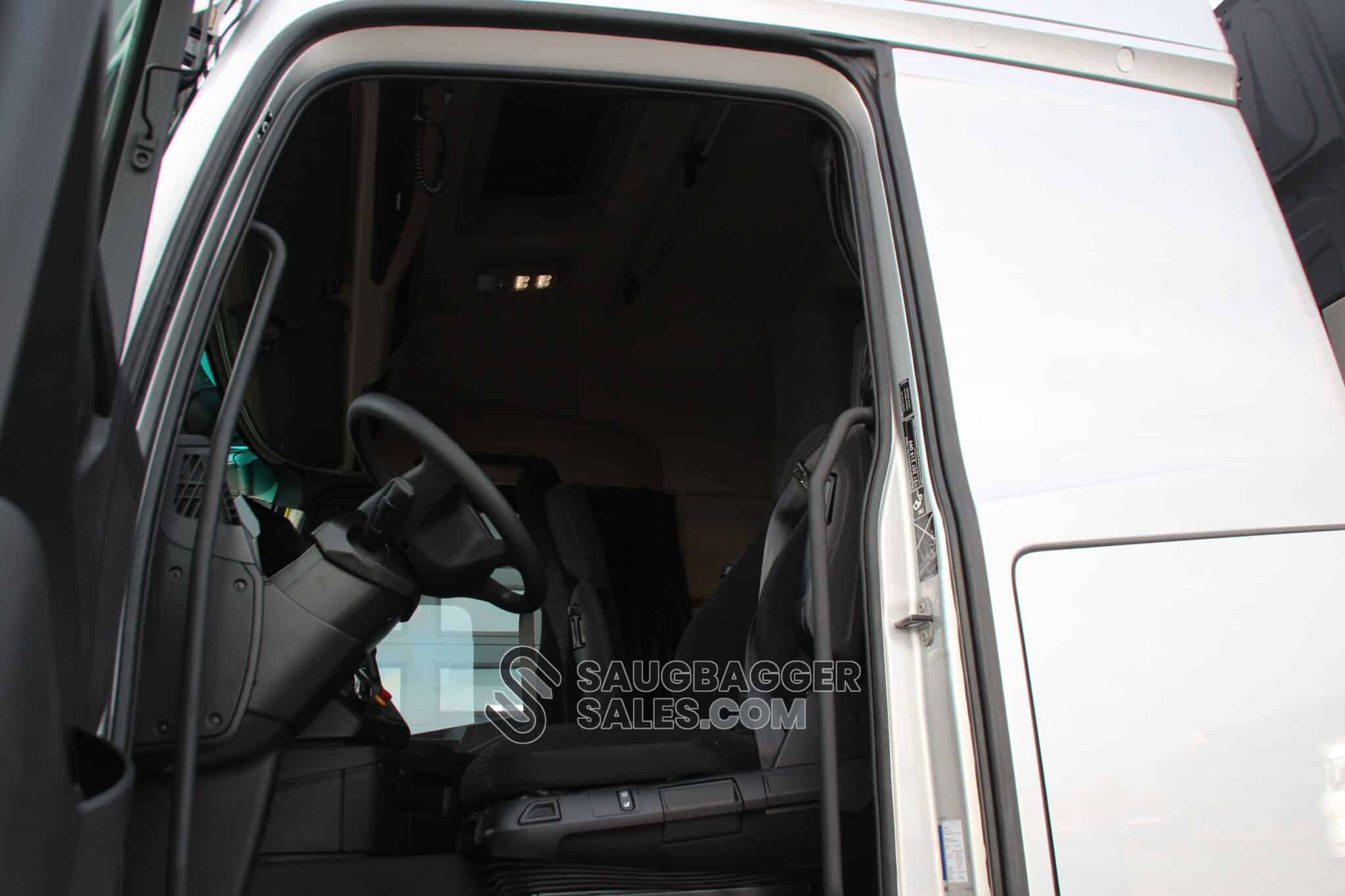

Cab: L-StreamSpace 170MT
-
Color: MB9744 Brilliant Silver metallic
-

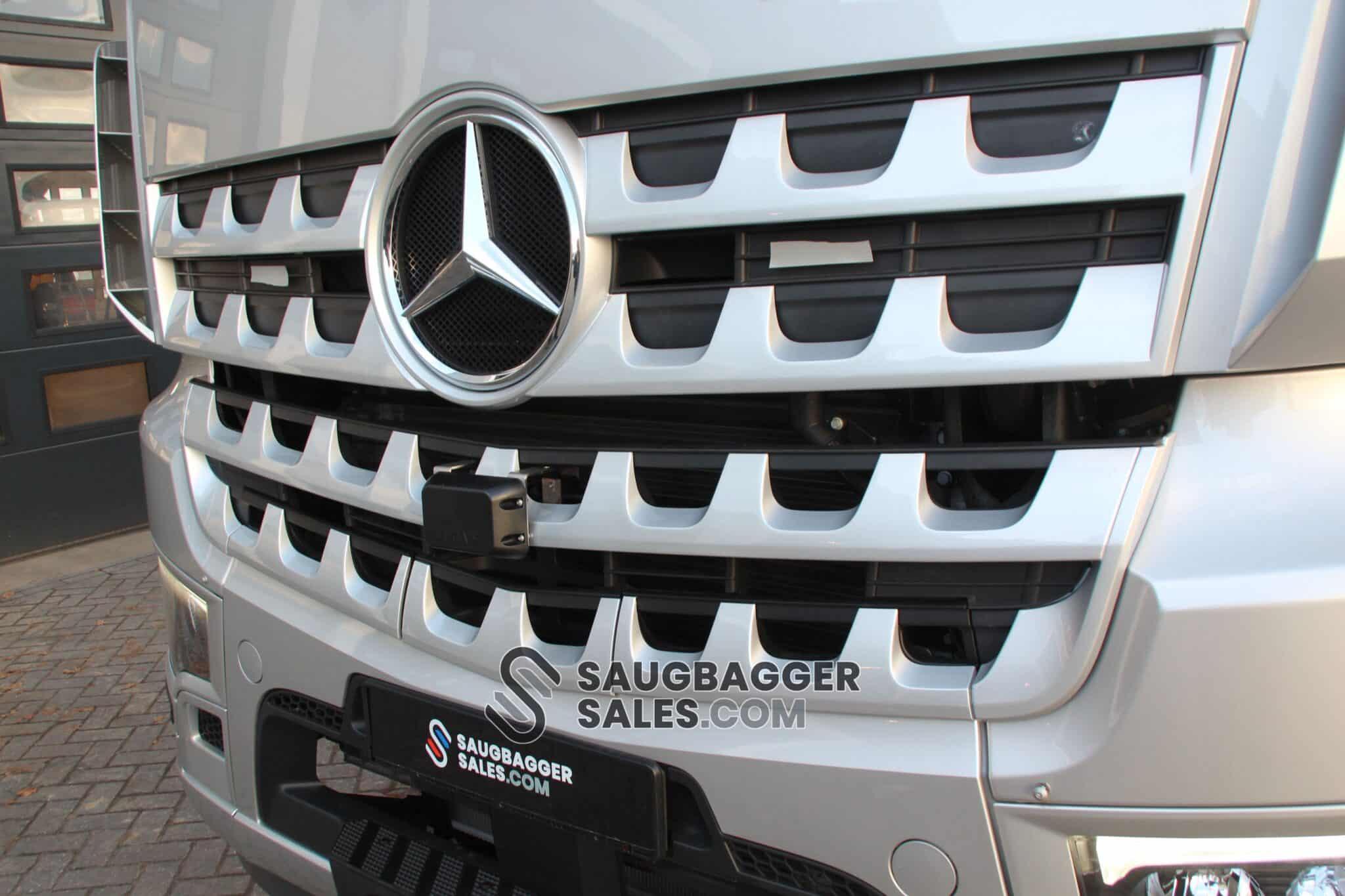

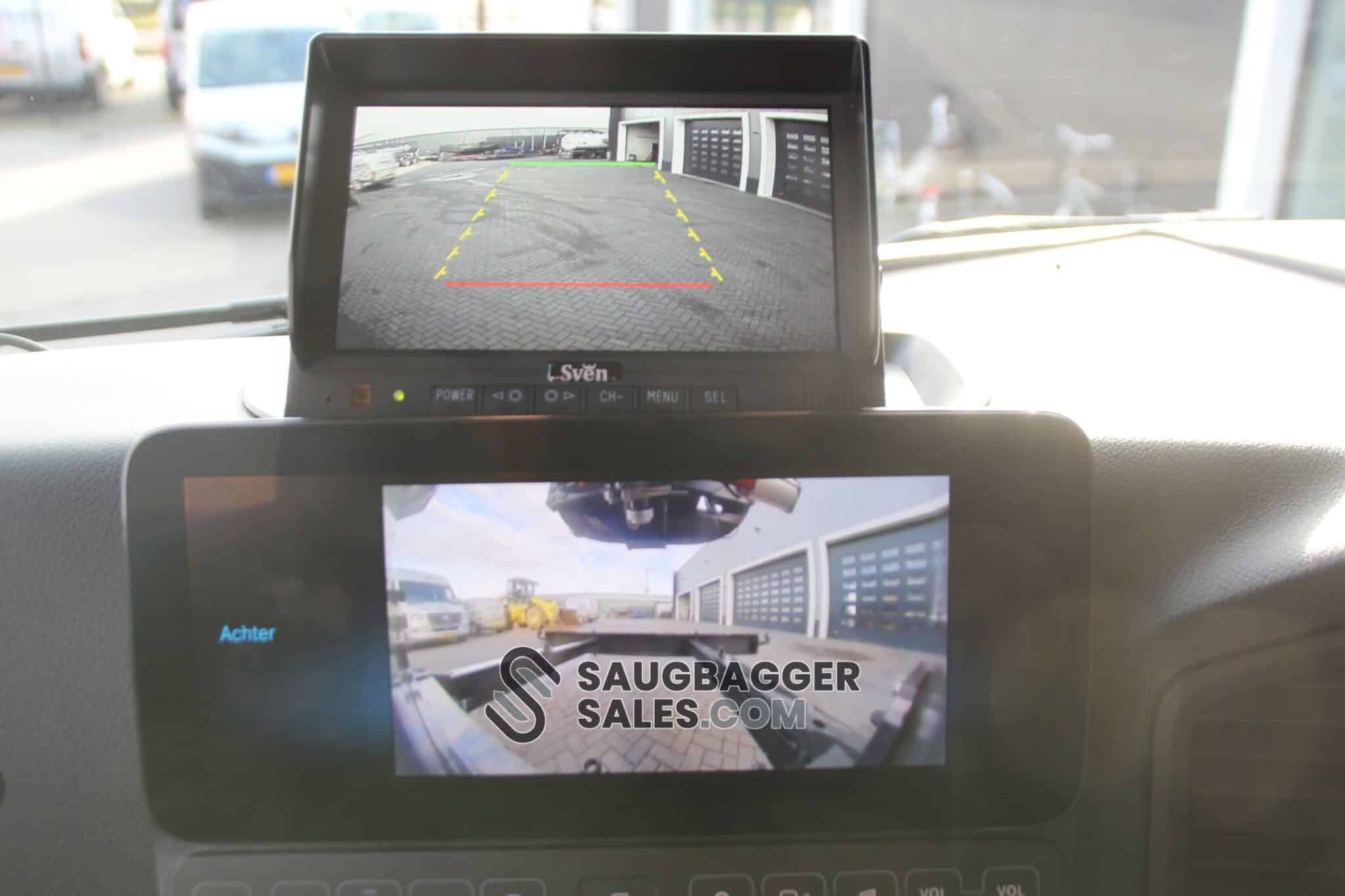

Rear-view camera
-

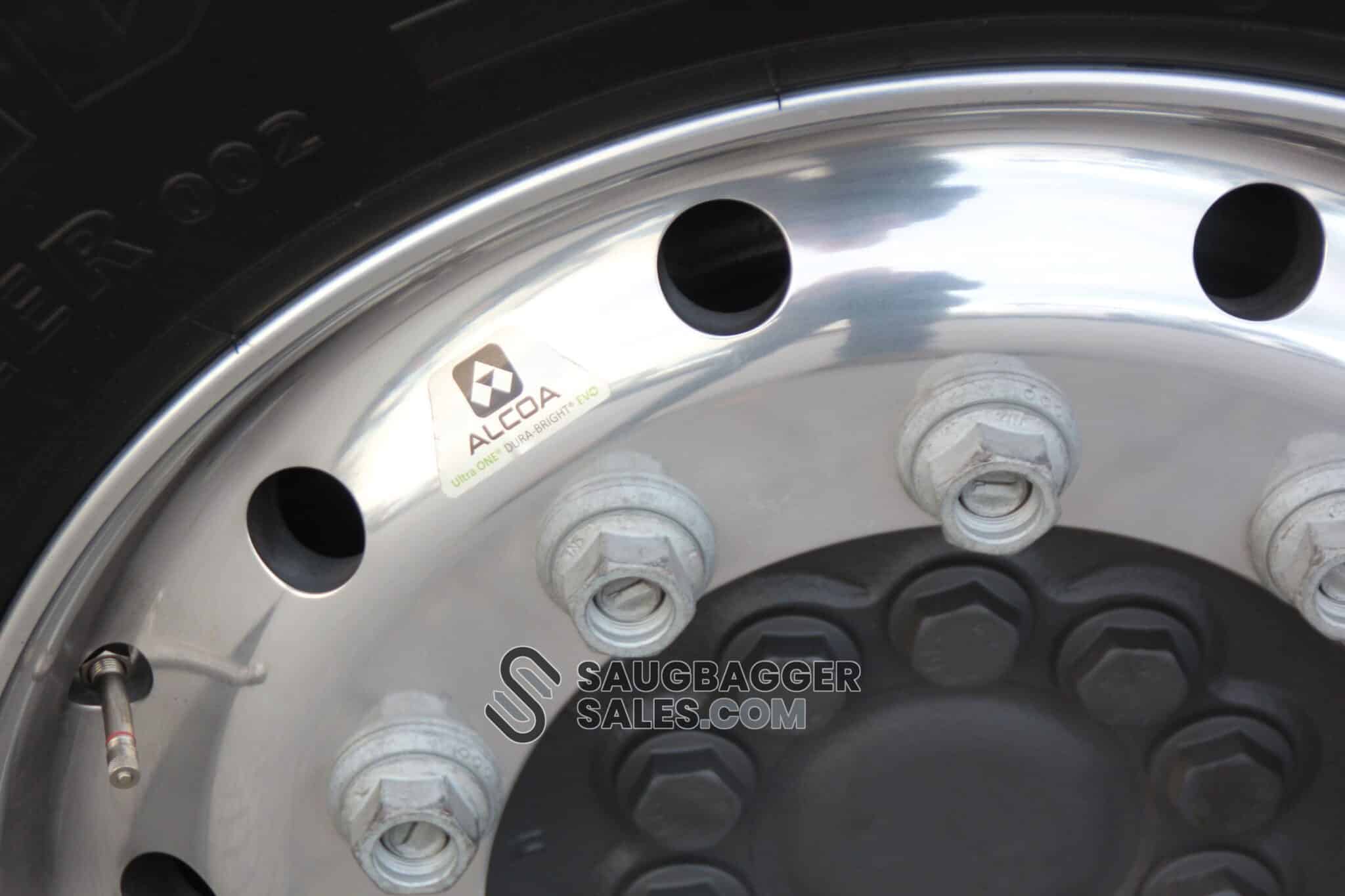

Alcoa rims all around

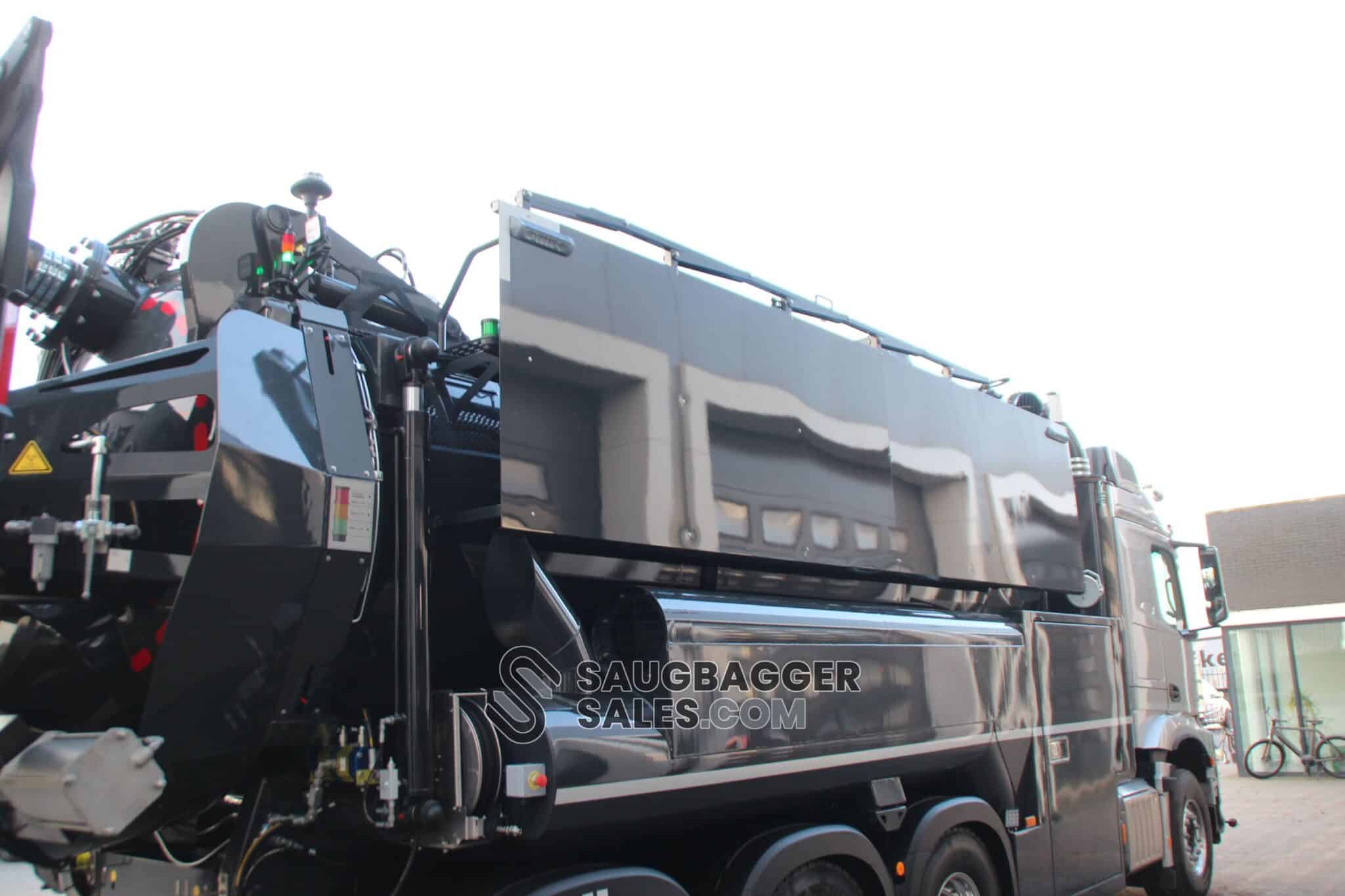

Bodywork: Naaktgeboren VPSE 11,000
-

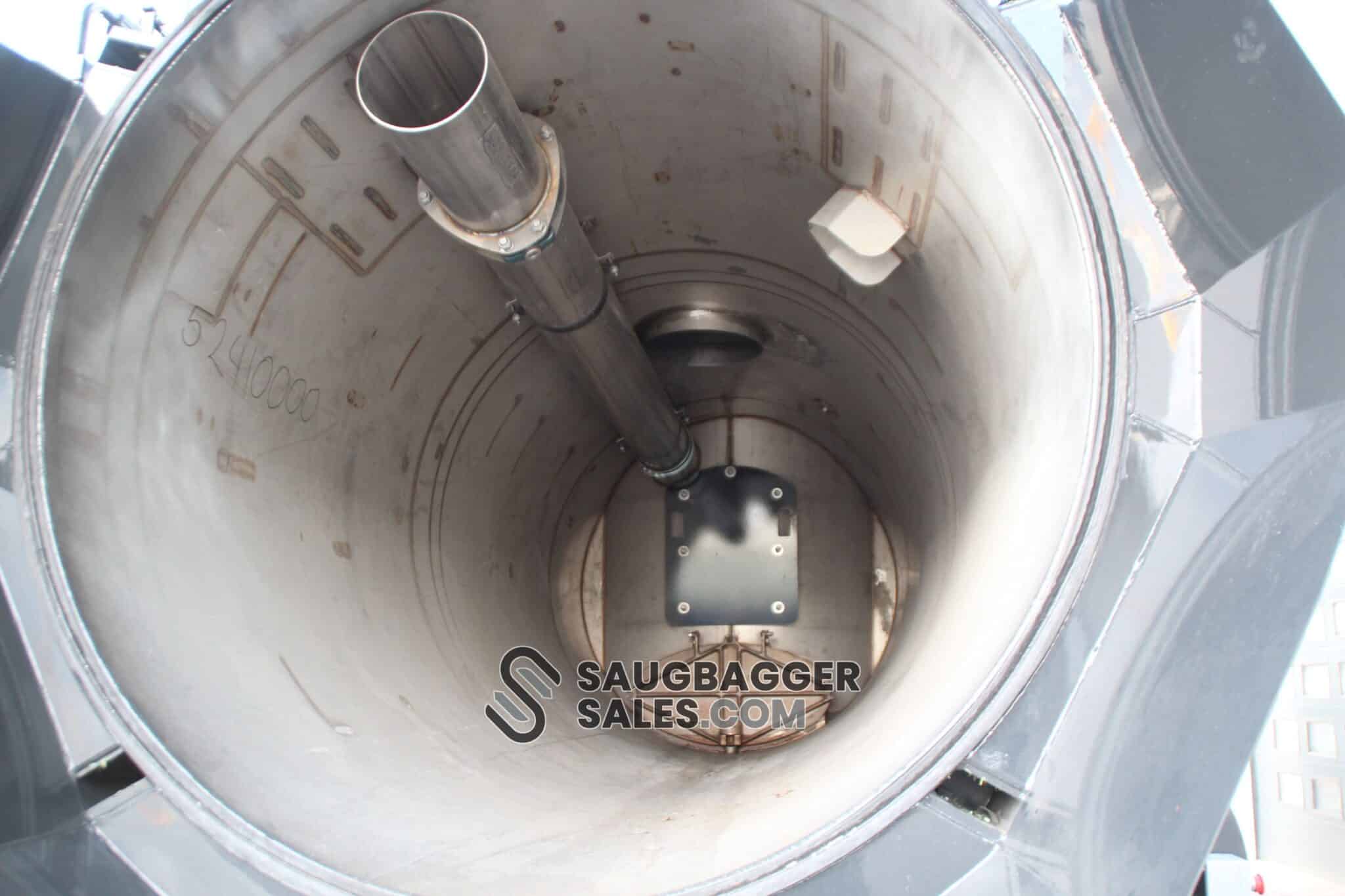

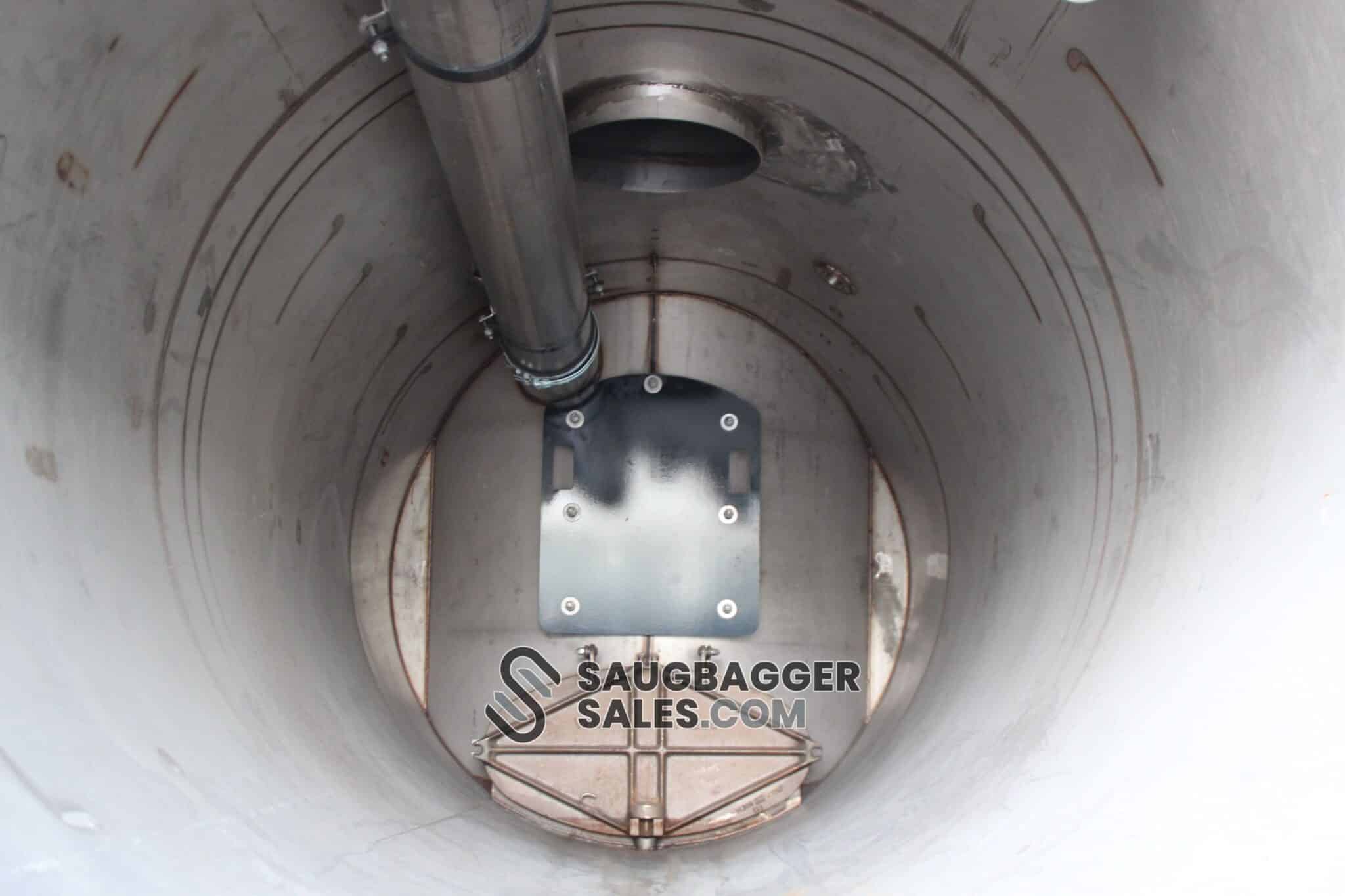

Tank: Stainless steel 6 mm
-
Color: Dark grey RAL 7021
-
Capacity: 13.5 m³ (including 2.5 m³ filter chamber)
-
Open filter chamber
-

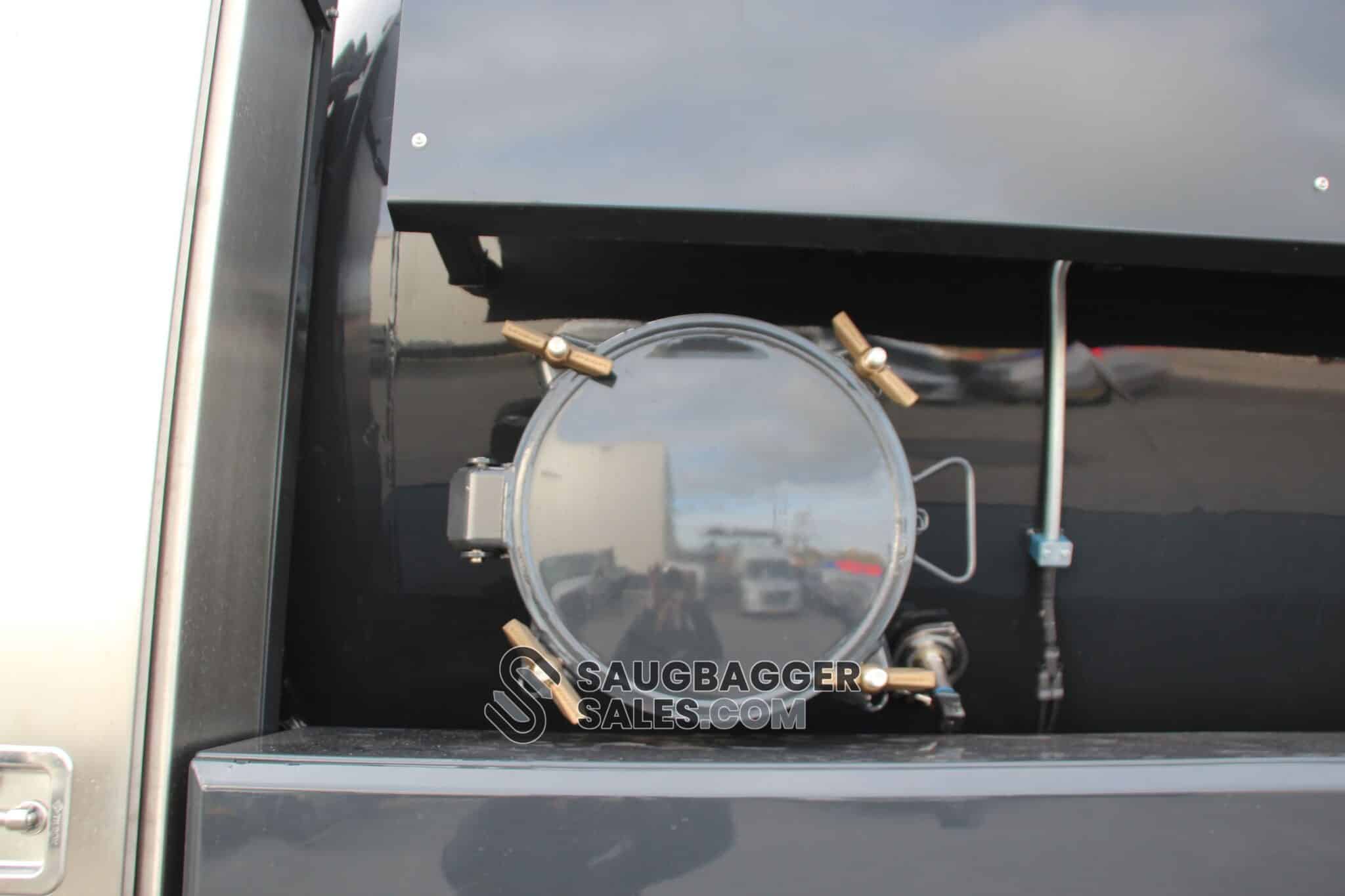

Safety filter housing including stainless steel filter
Pump unit
-

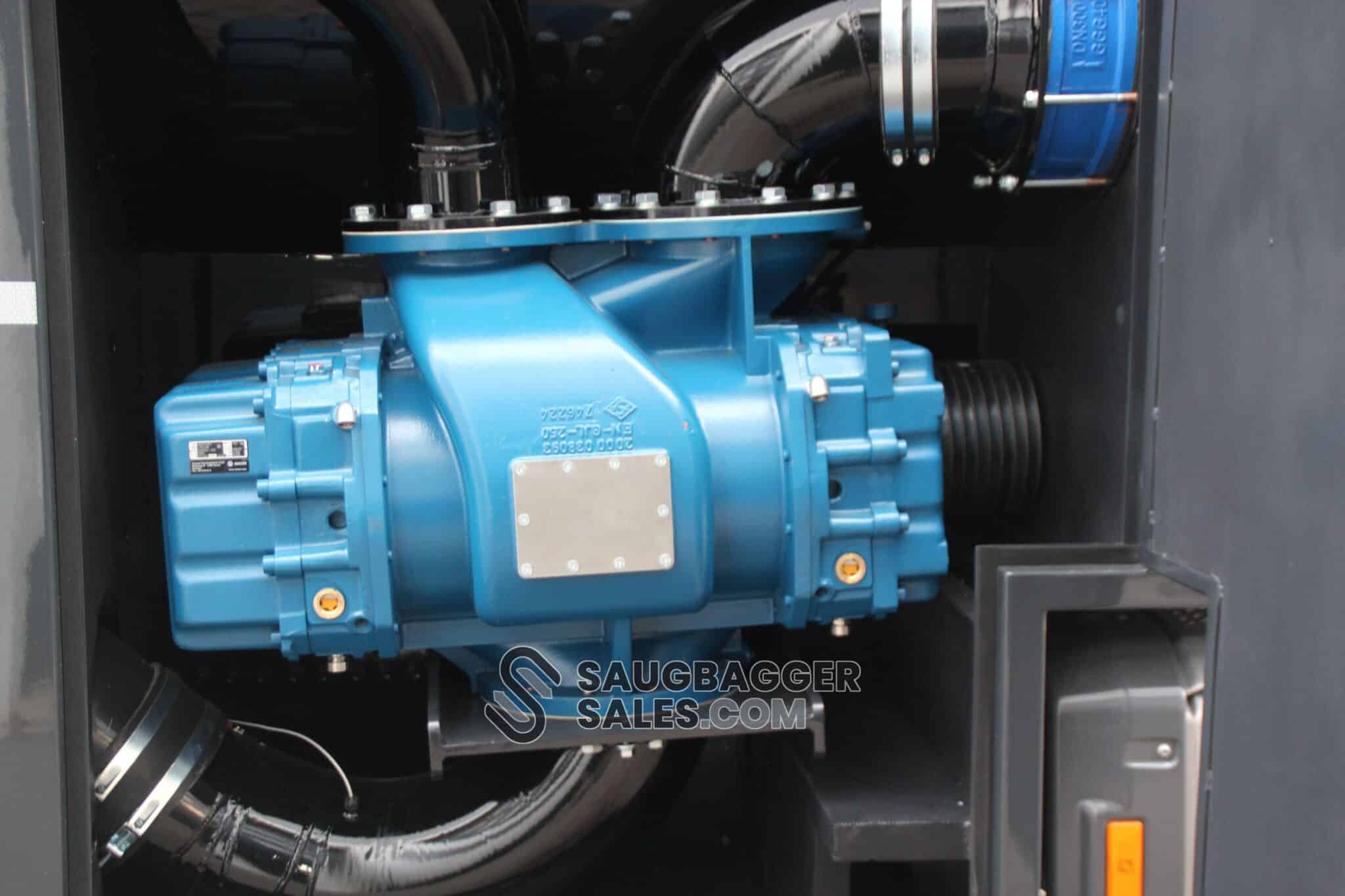

Vacu-Press 11,000 m³/h air-cooled 3-lobe rotary blower
-
Vacuum: 0.95 bar
-
Pressure: 1.00 bar

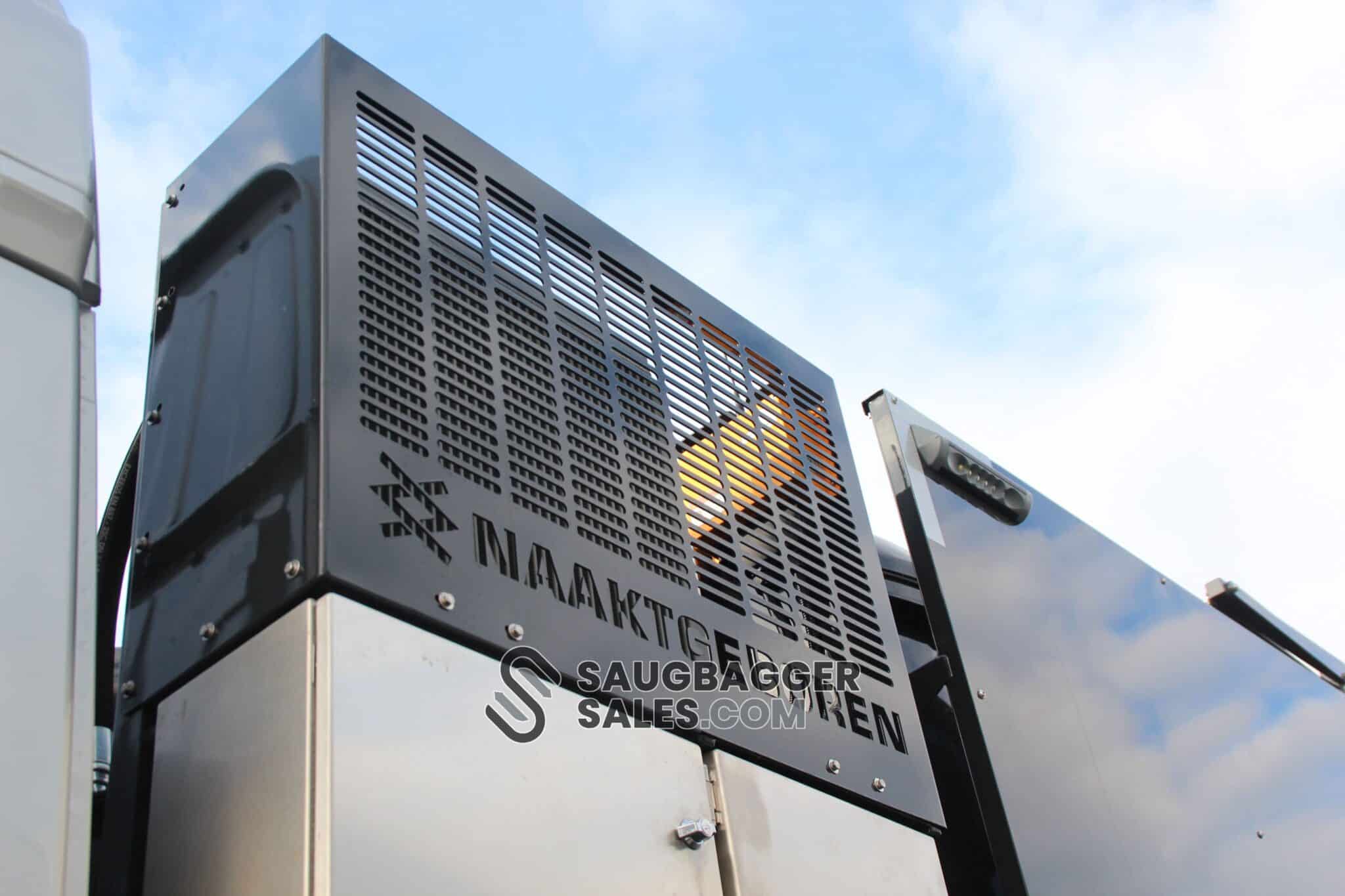

Sound insulation
-
The pump is installed in a sound-insulated housing with inlet, cooling air, and exhaust silencers
-
The doors of the sound-insulating housing as well as the interior of the silencers are made of stainless steel
-
The noise level of the suction installation is around 80 dB(A)

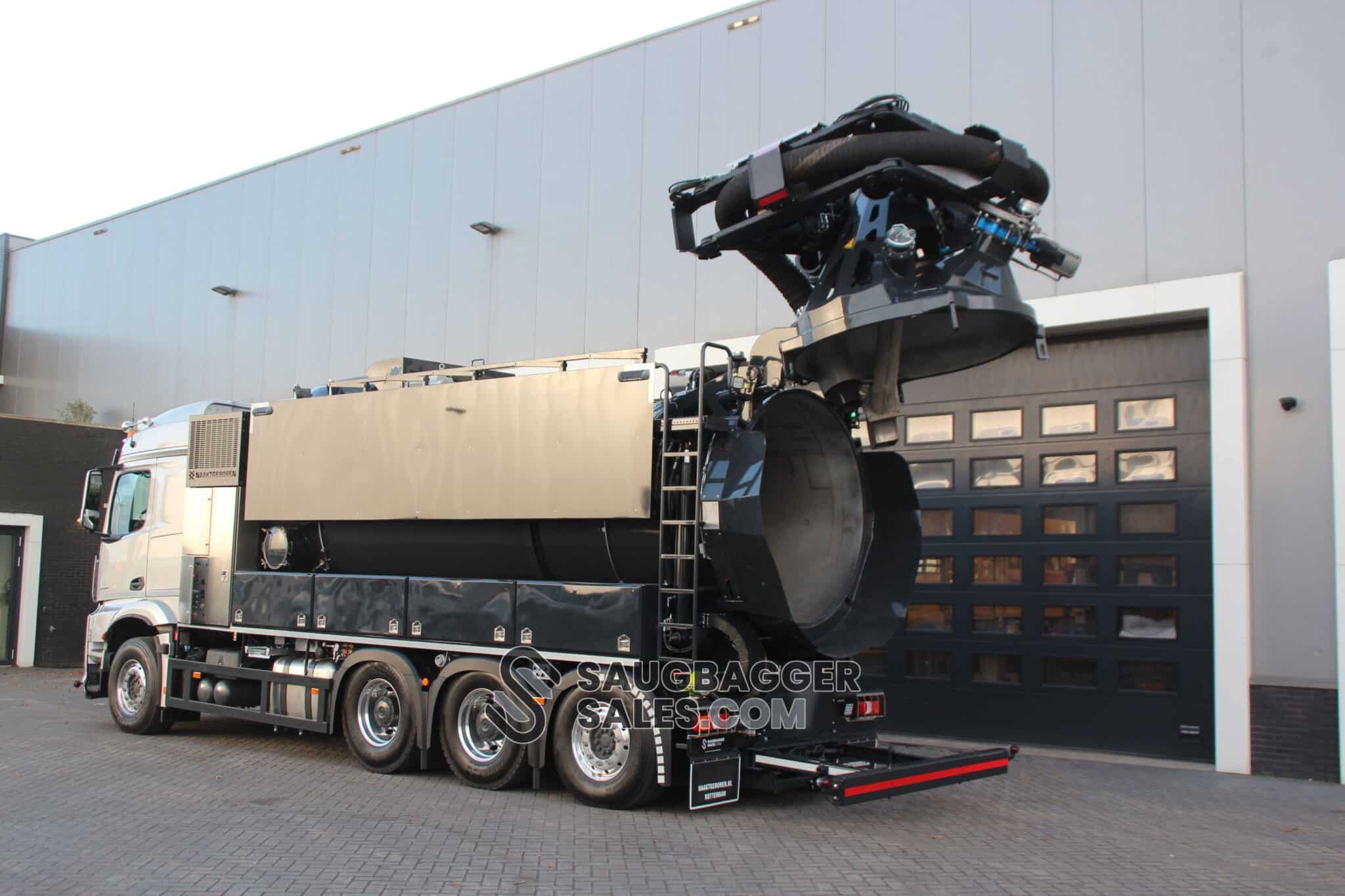

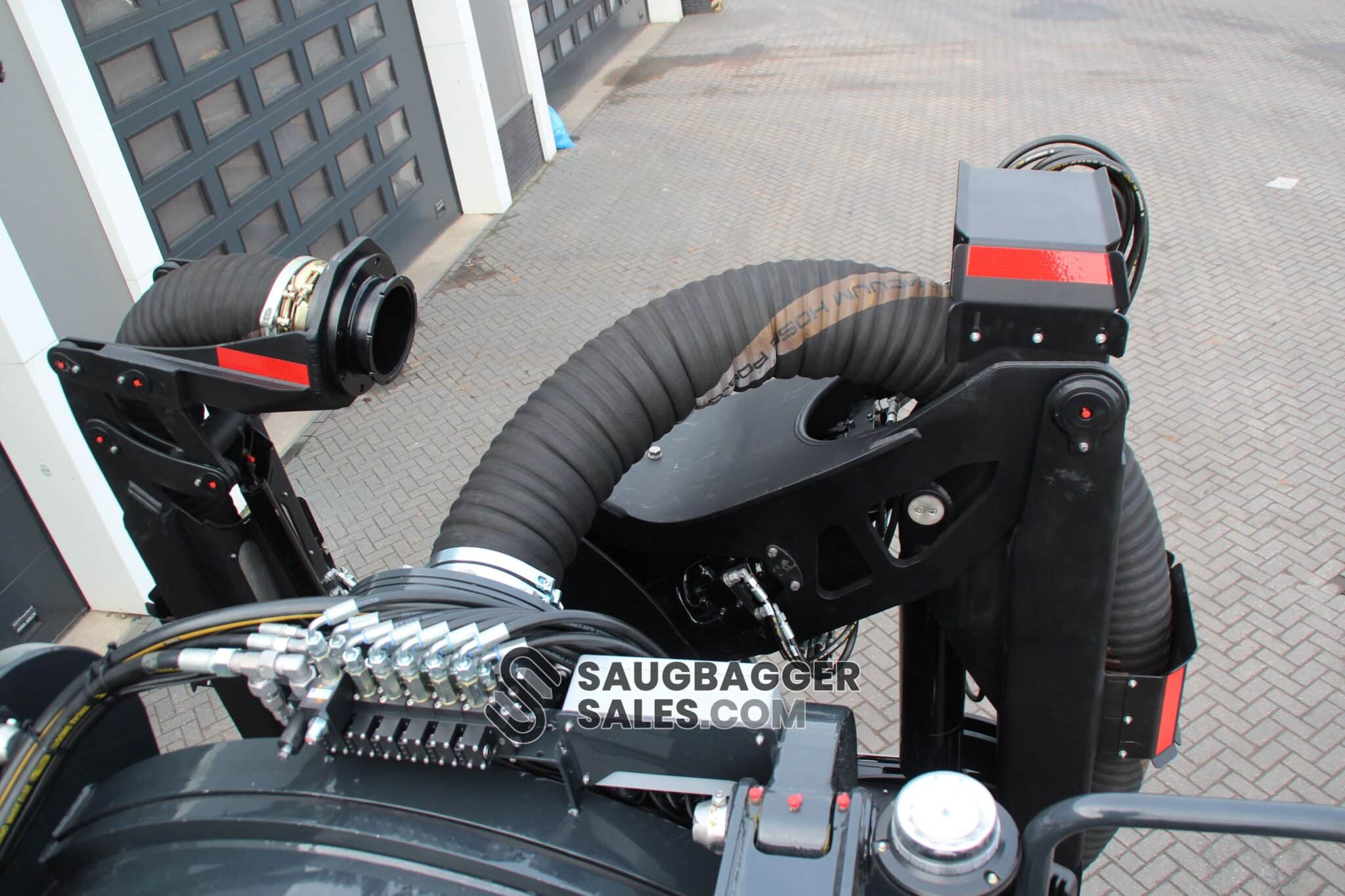

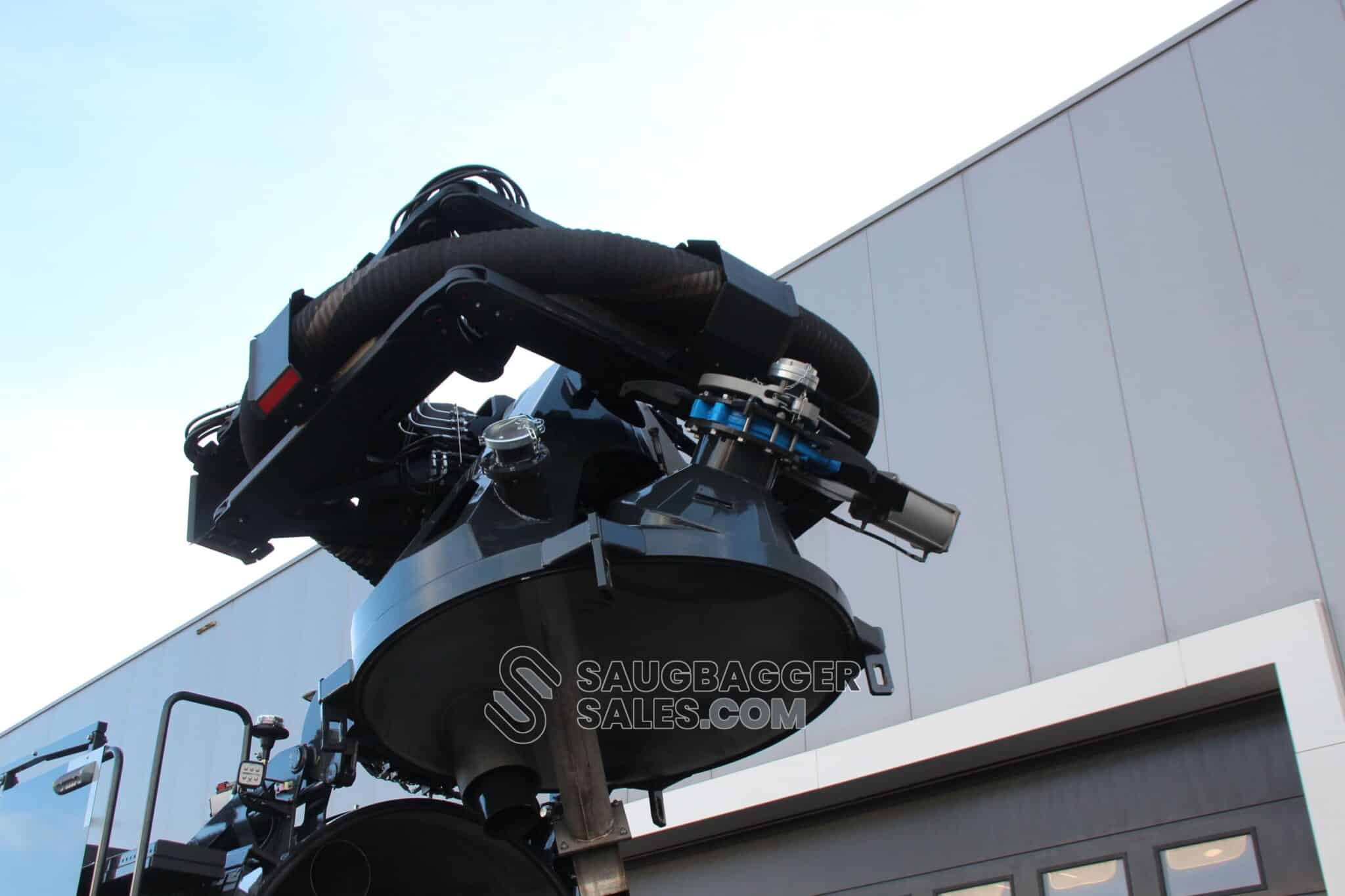

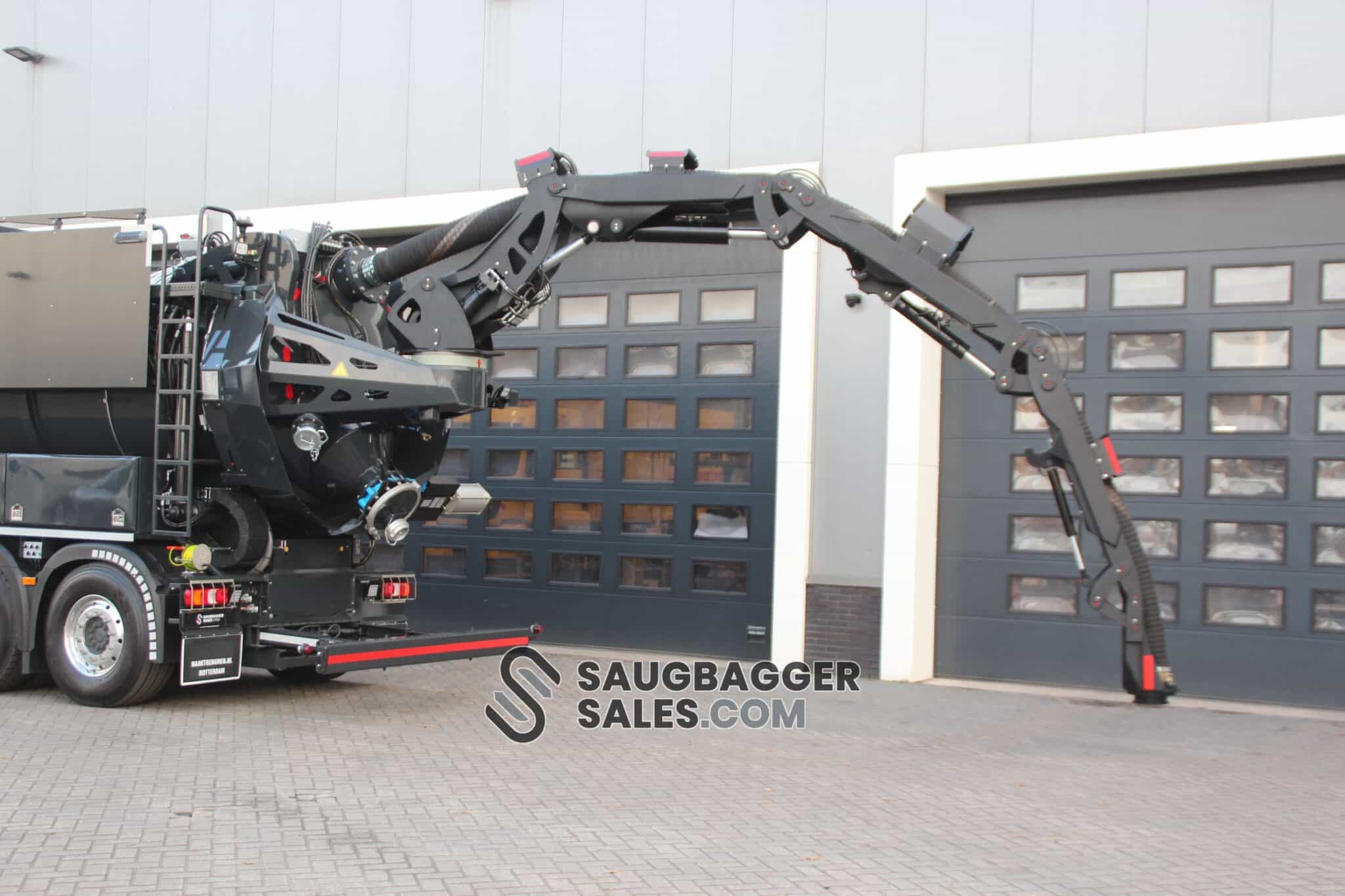

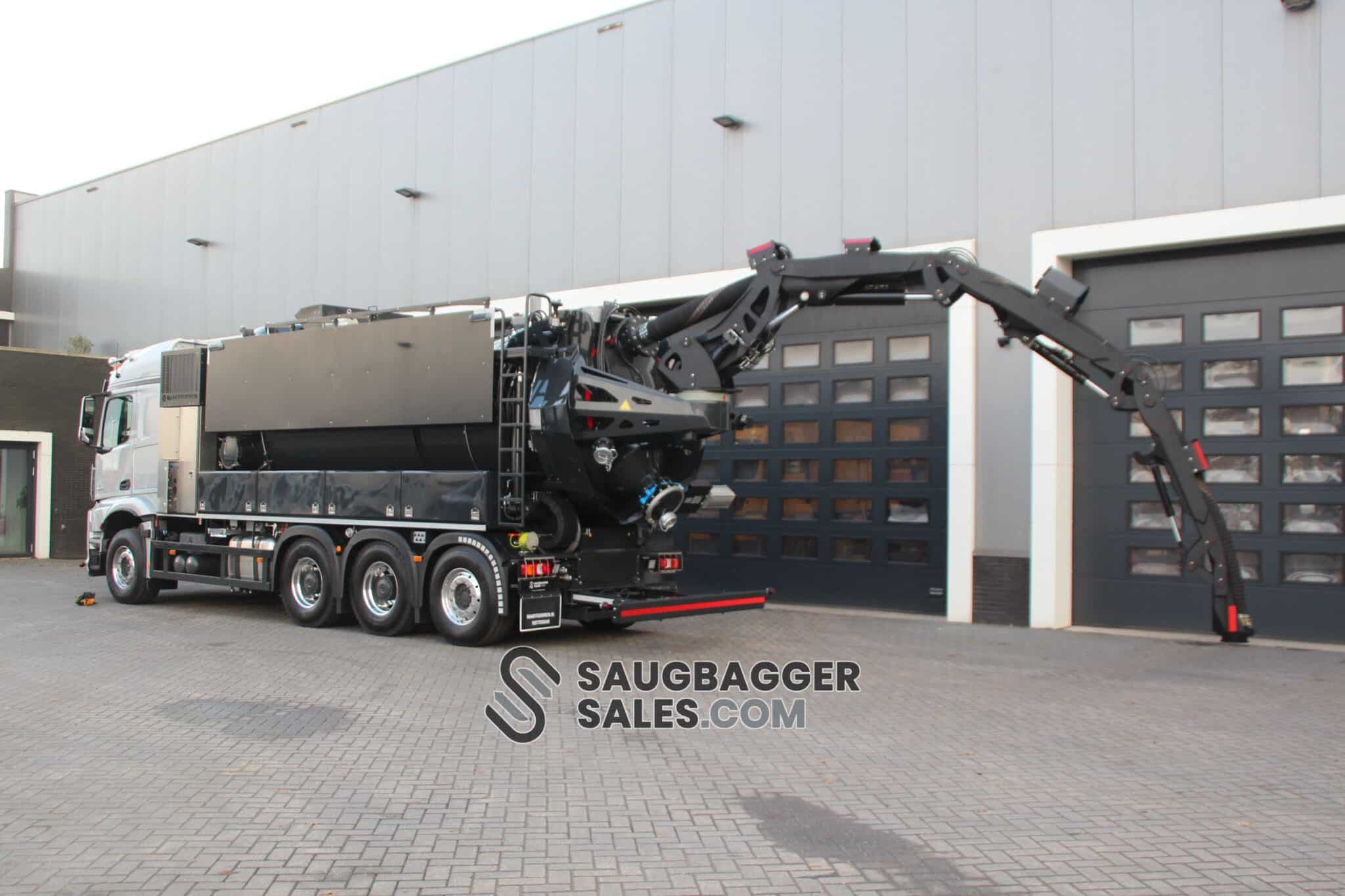

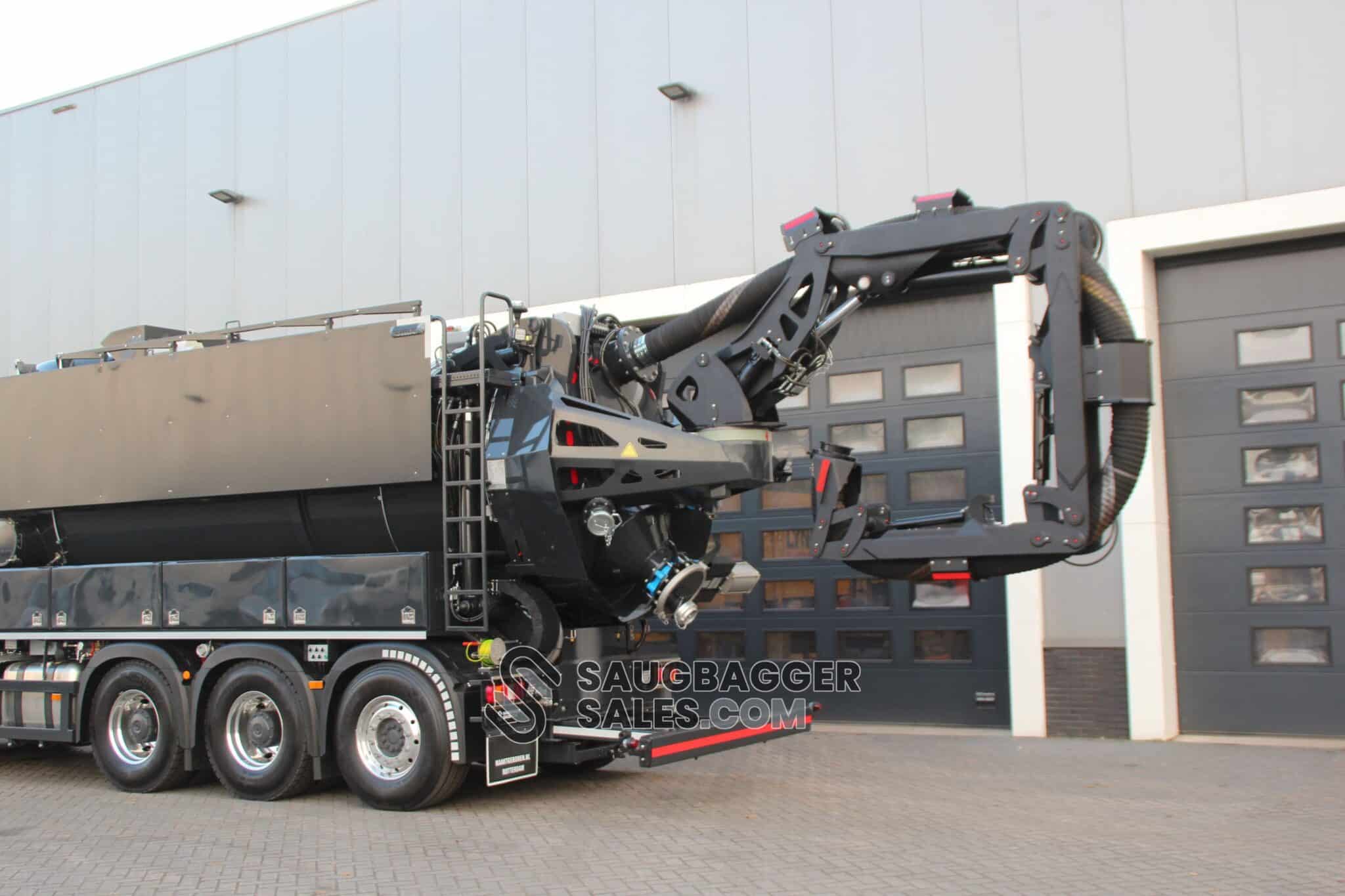

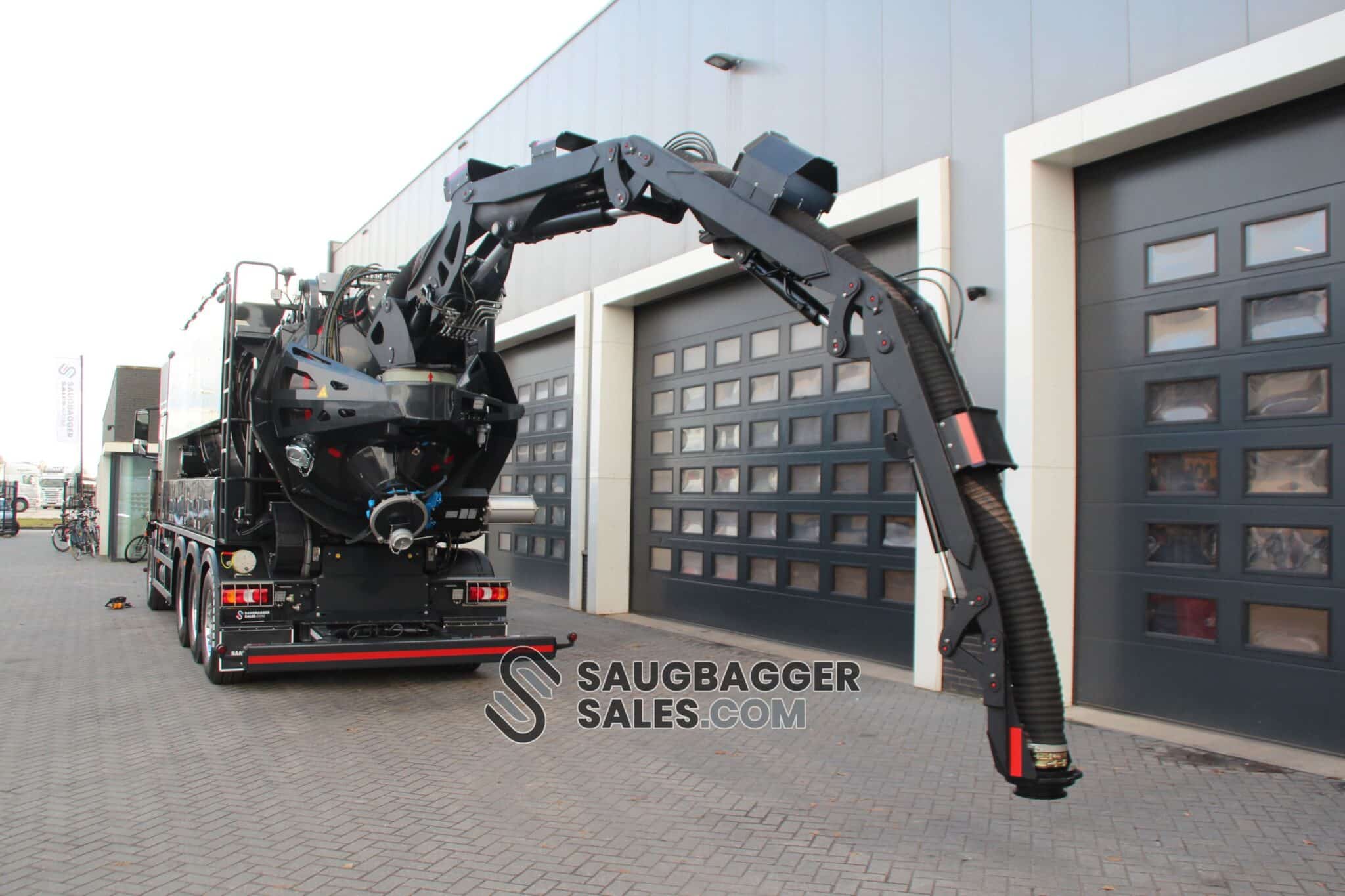

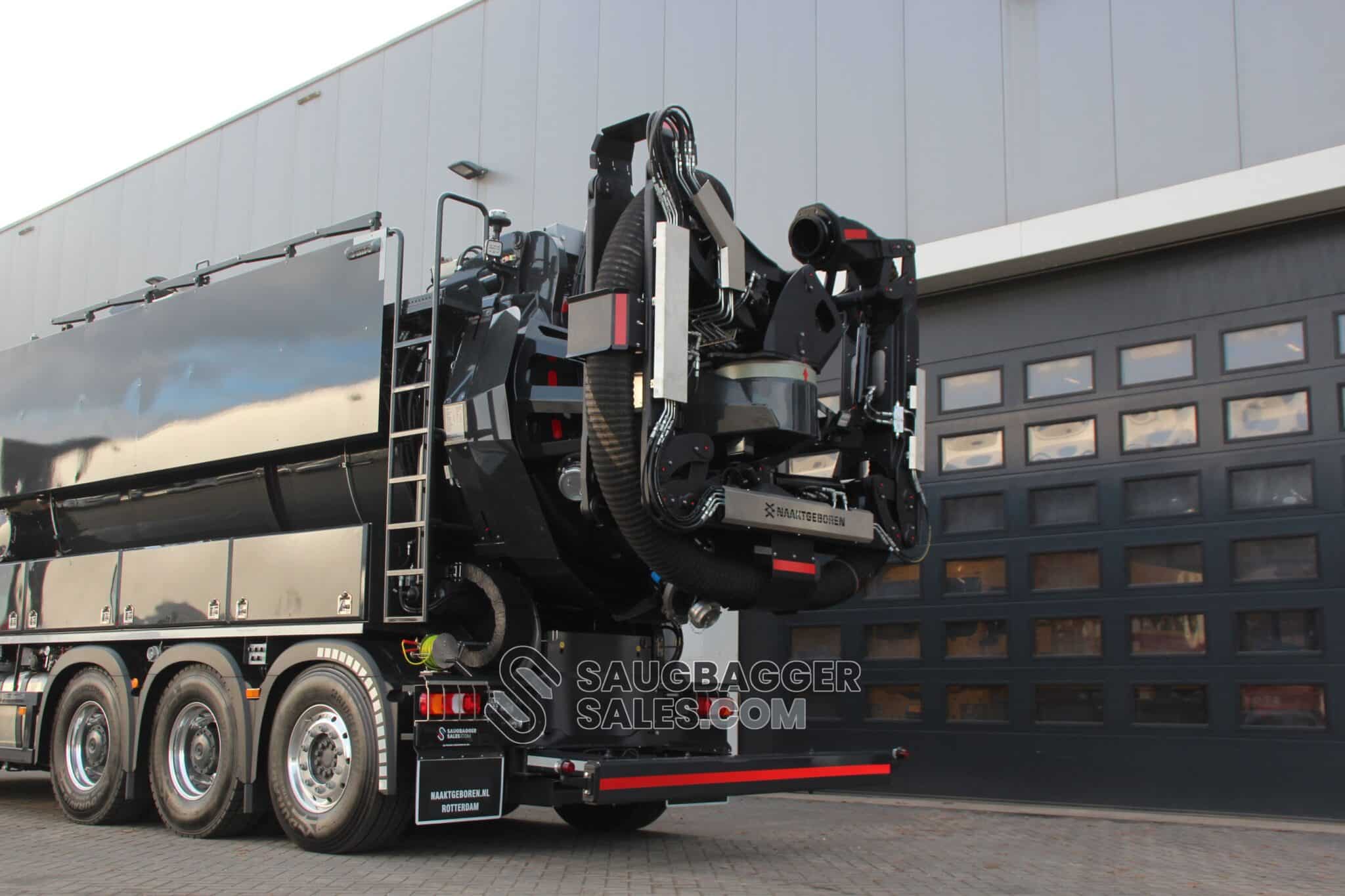

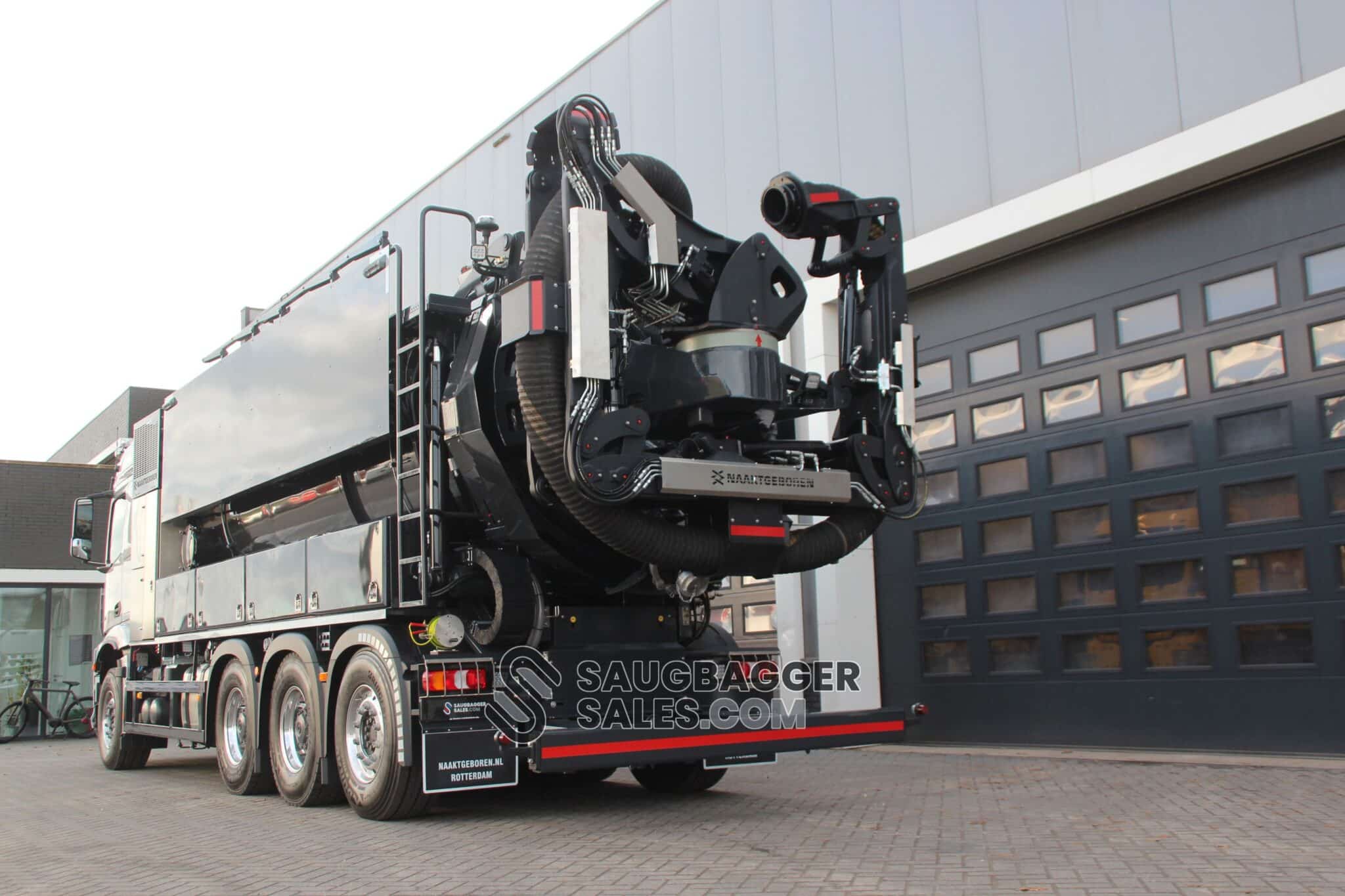

Heavy-duty suction arm
-
Reach: 6,600 mm
-
Rotation range: 225°
-
10″ suction hose
Transfer case
The OMSI transfer case interrupts the driveline and transfers engine power to the pump. The engine can run at an optimal constant speed while various pump speeds are possible. This benefits service life and reduces fuel consumption.
Hydraulics & Controls
-

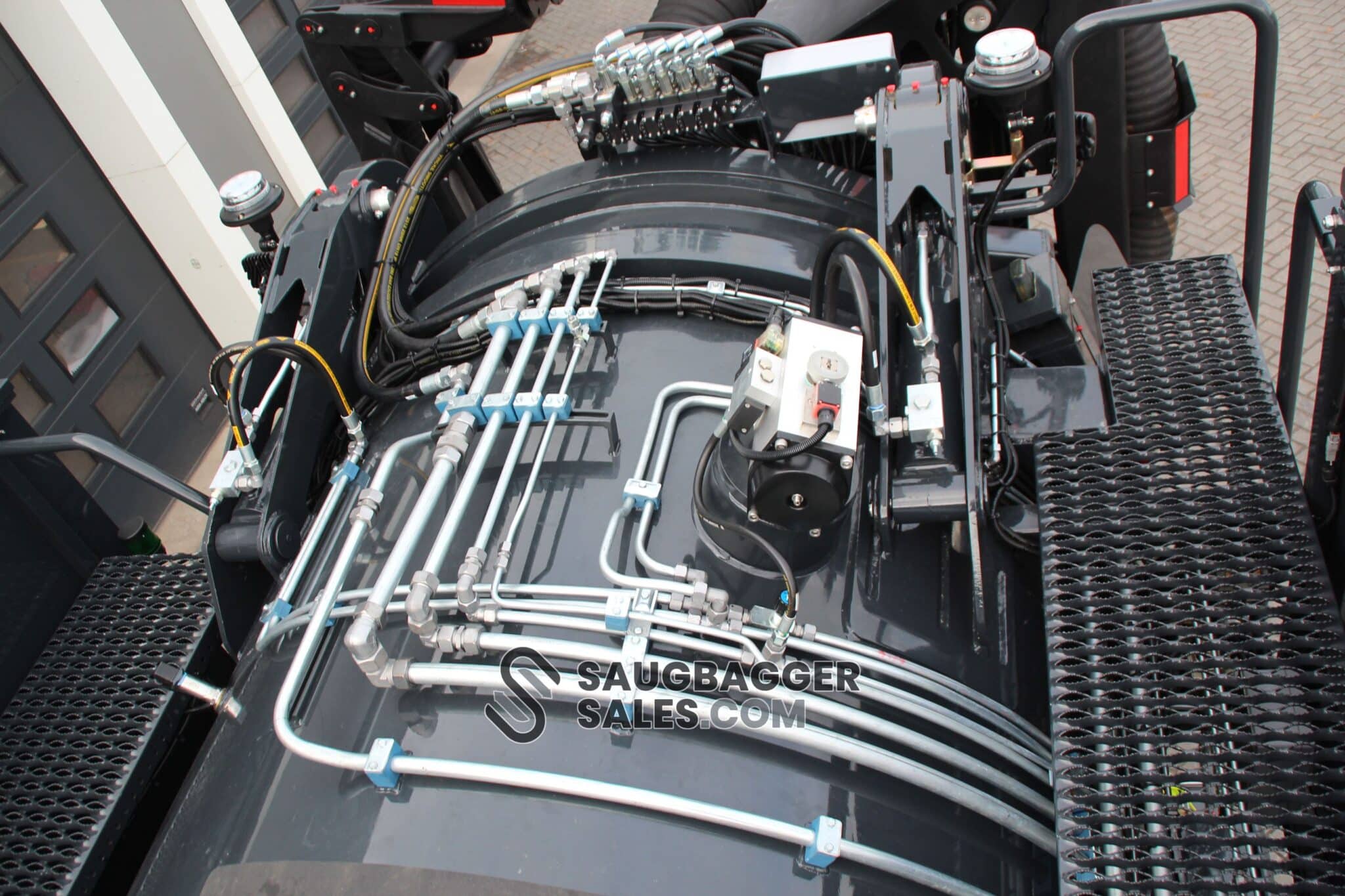

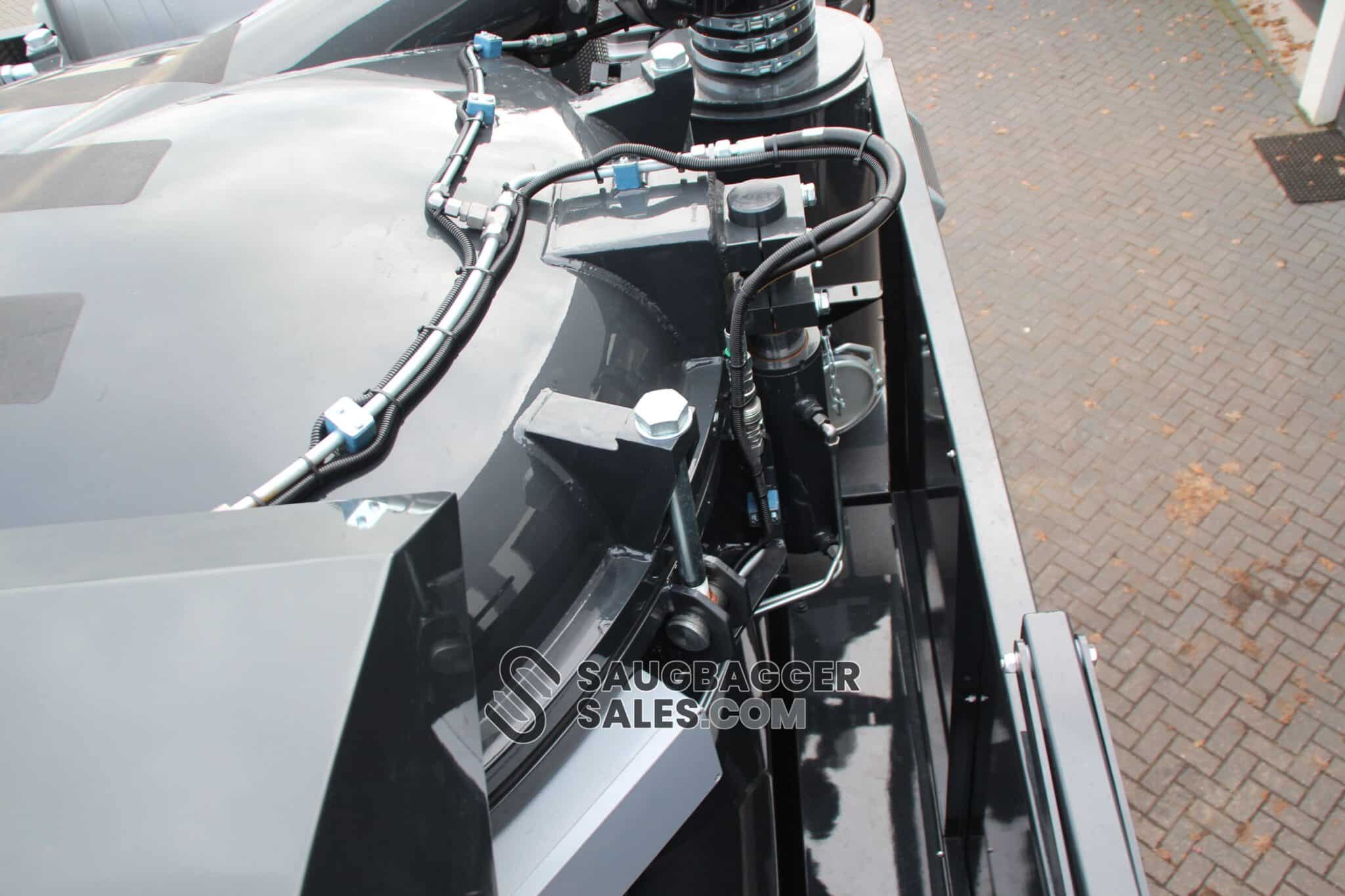

Hydraulic system for tipping the tank, opening and locking the rear door; pump mounted on PTO
-

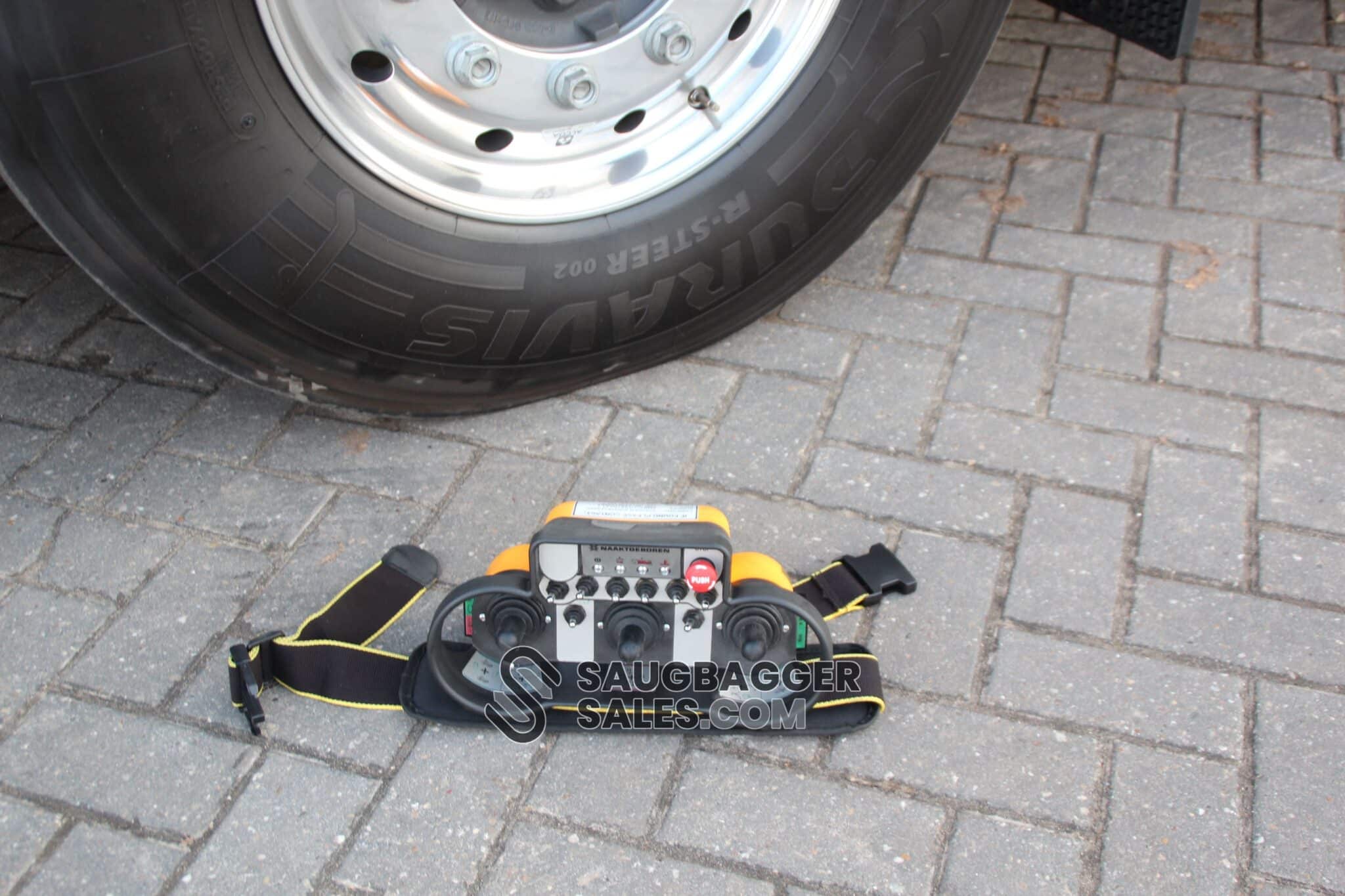

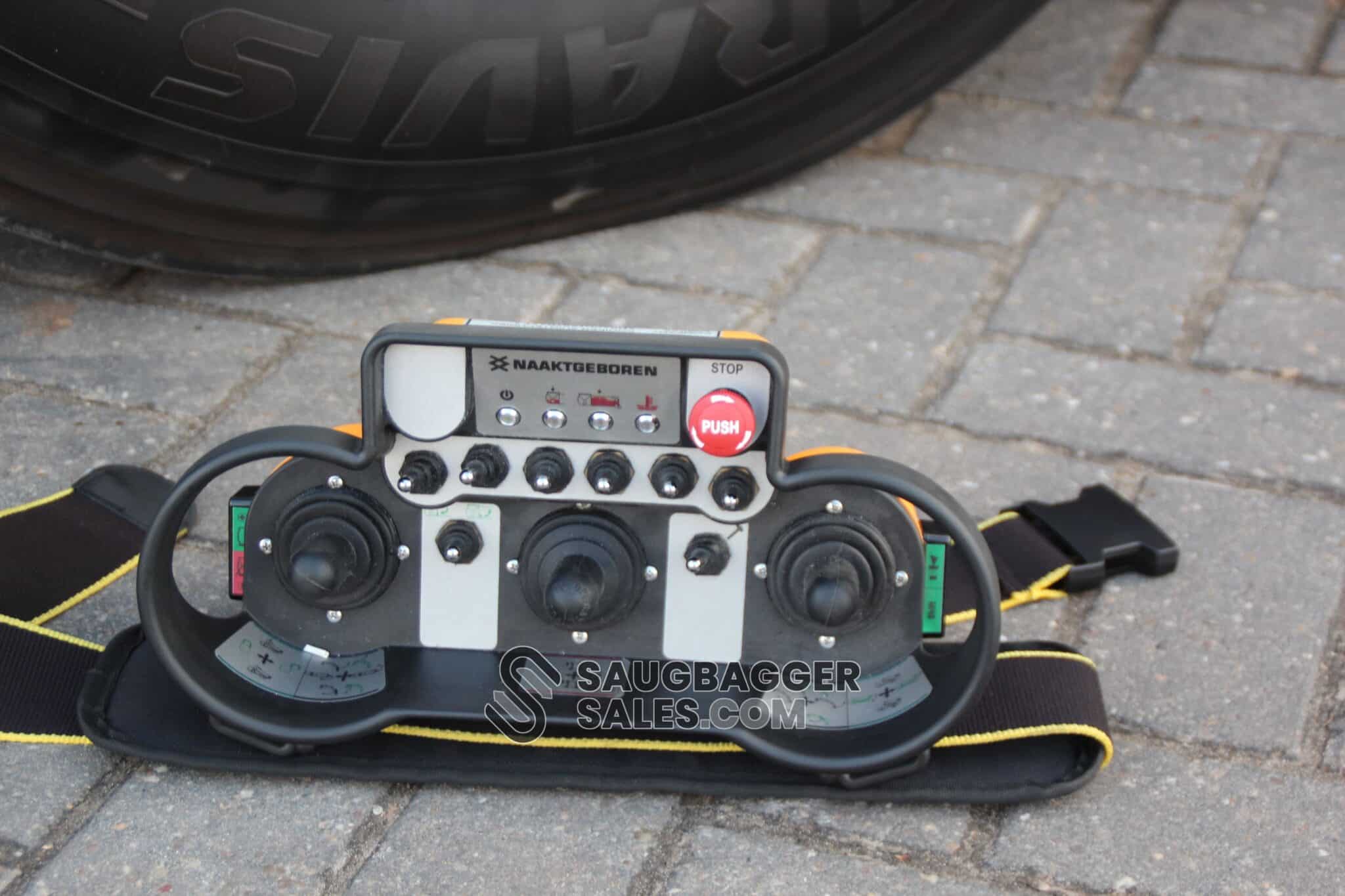

2× Hetronic remote controls for operating the machine
-

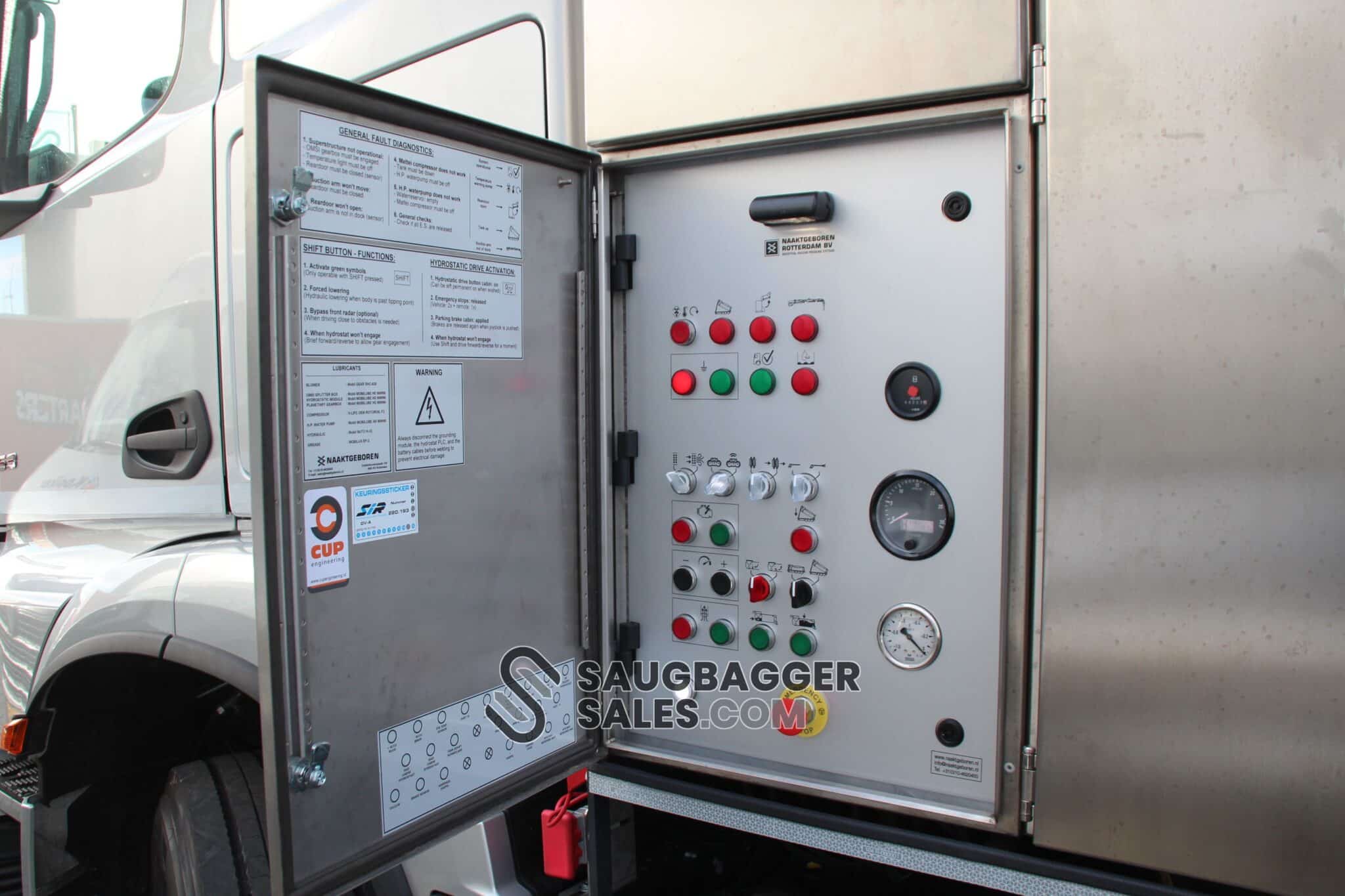

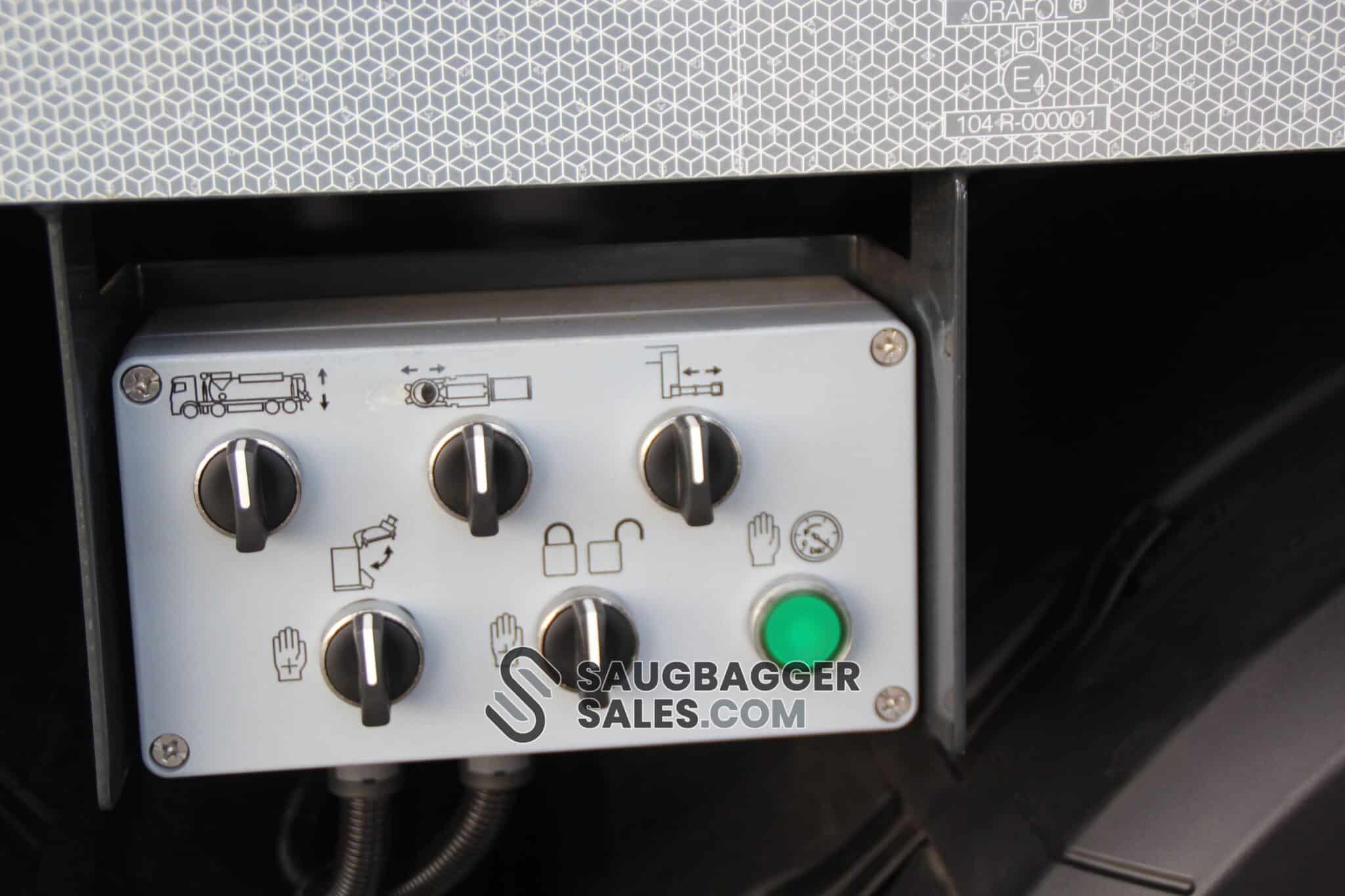

An illuminated control panel built into a lockable, waterproof housing
-
Filter system with 42 quick-change filters
Weight and dimensions
-
Total length: approx. 10,500 mm
-
Total height: approx. 3,900 mm
-
Total weight: approx. 25,000 kg
-
Tank diameter: 1,800 mm
Options
-
Hydrostatic drive, steering function + sensors
-

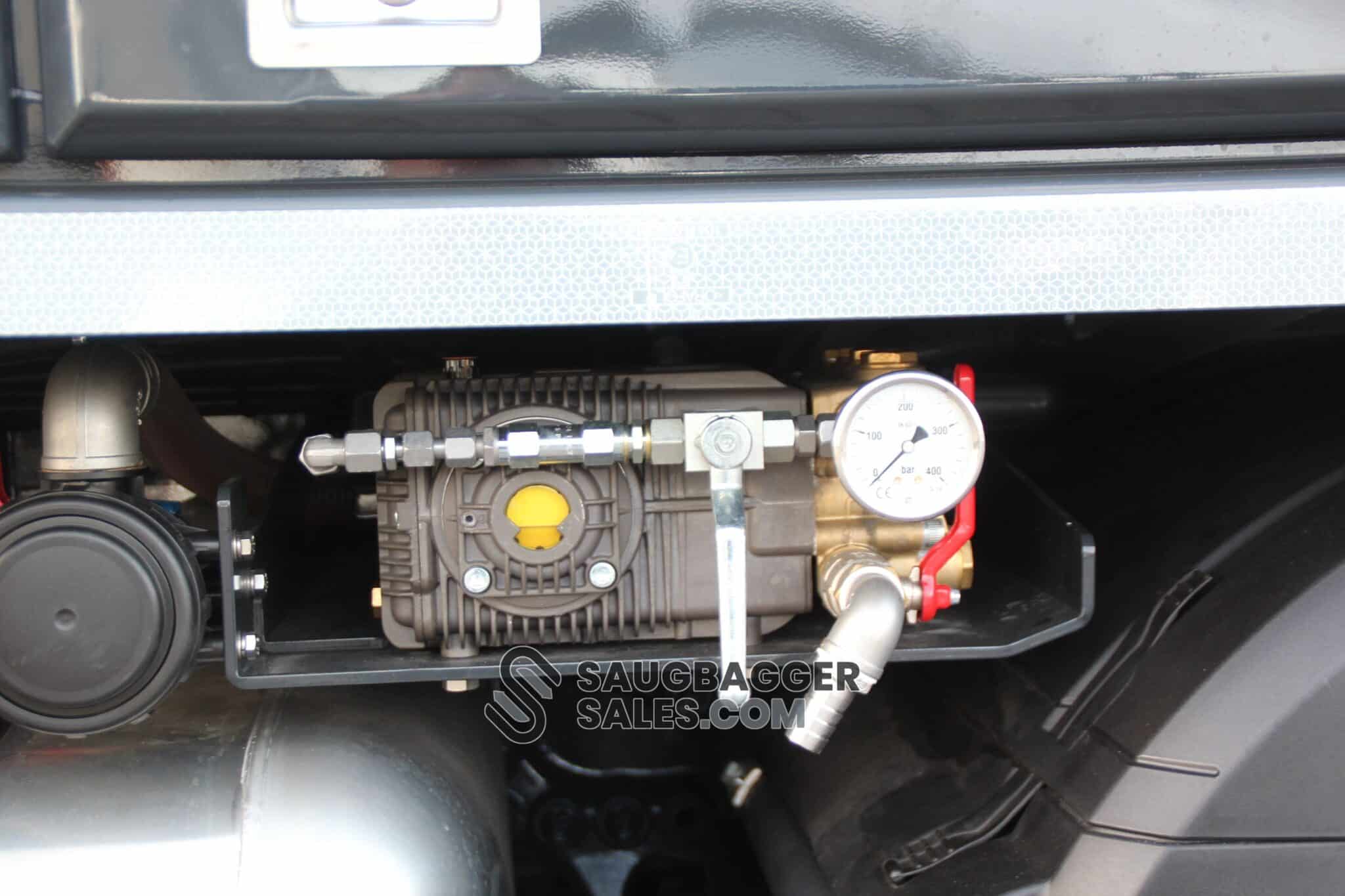

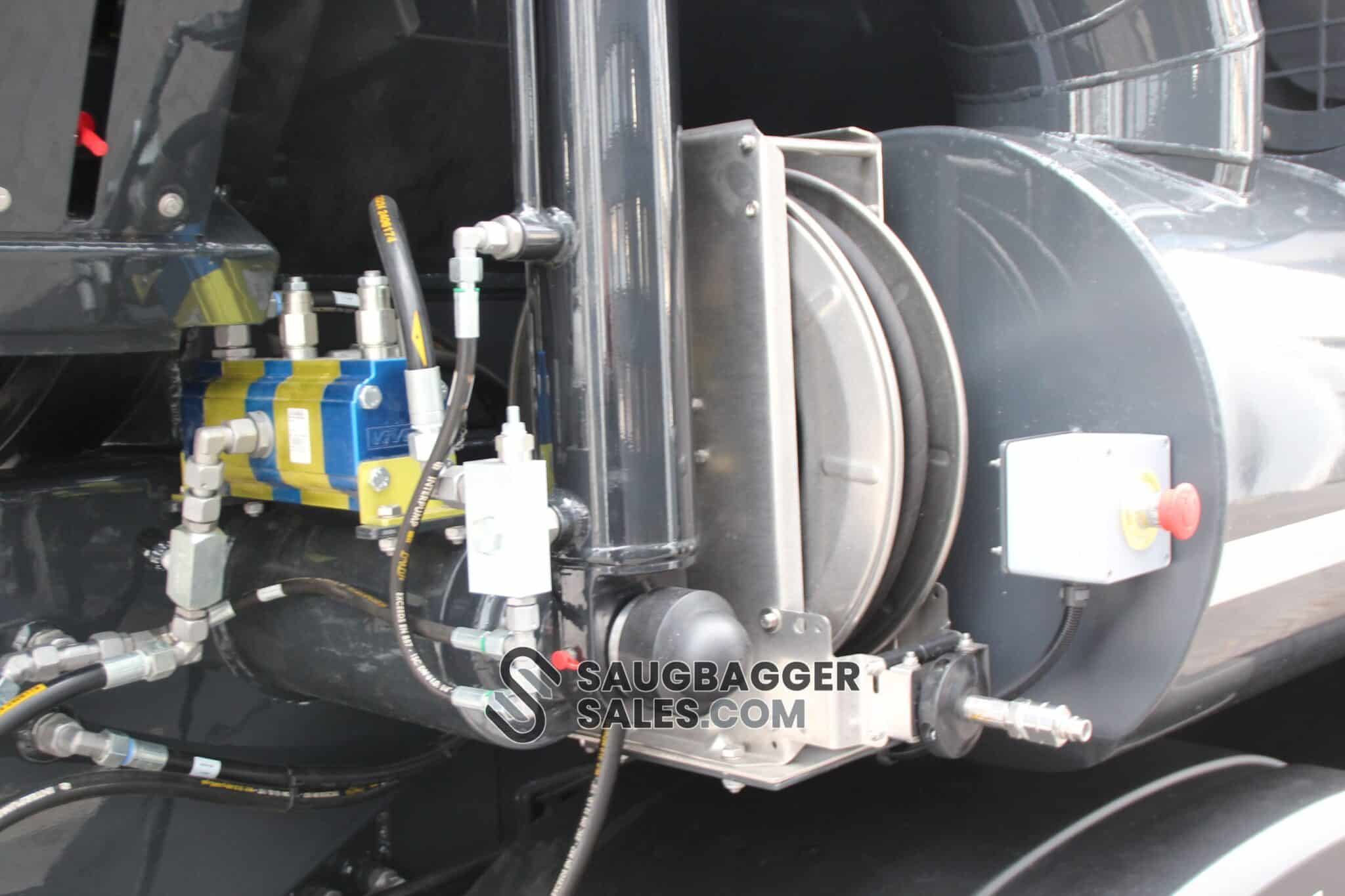

High-pressure water system including stainless steel reel 15 m
-
Pmax = 150 bar, Q = 30 l/min, water tank 750 l
-
-

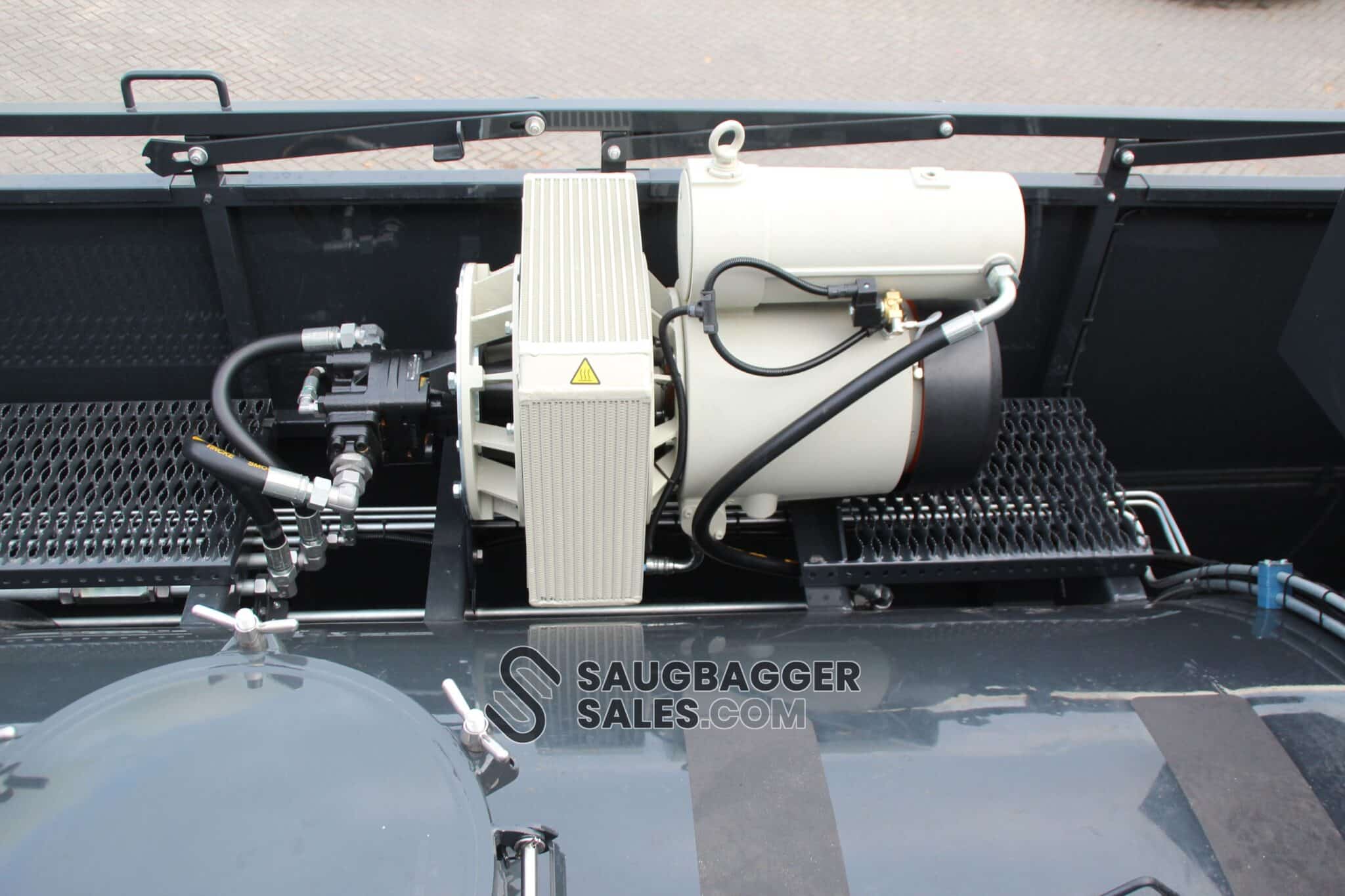

Mattei compressor Qmax = 4.5 m³/min, Pmax = 7 bar
-
Air hose reels 20 m, oiled and unoiled
-
2× vibrators on the tank for easier unloading
-

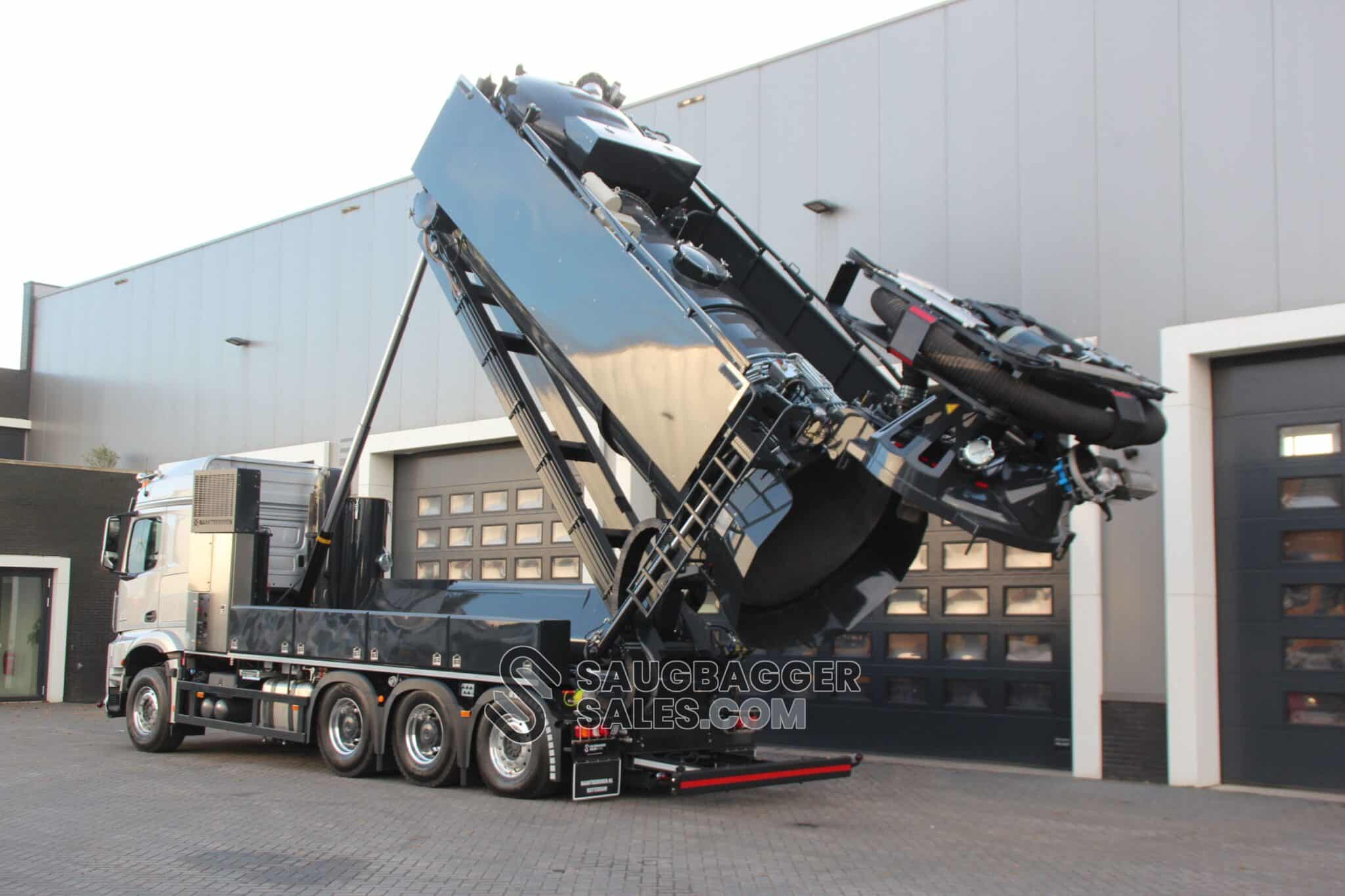

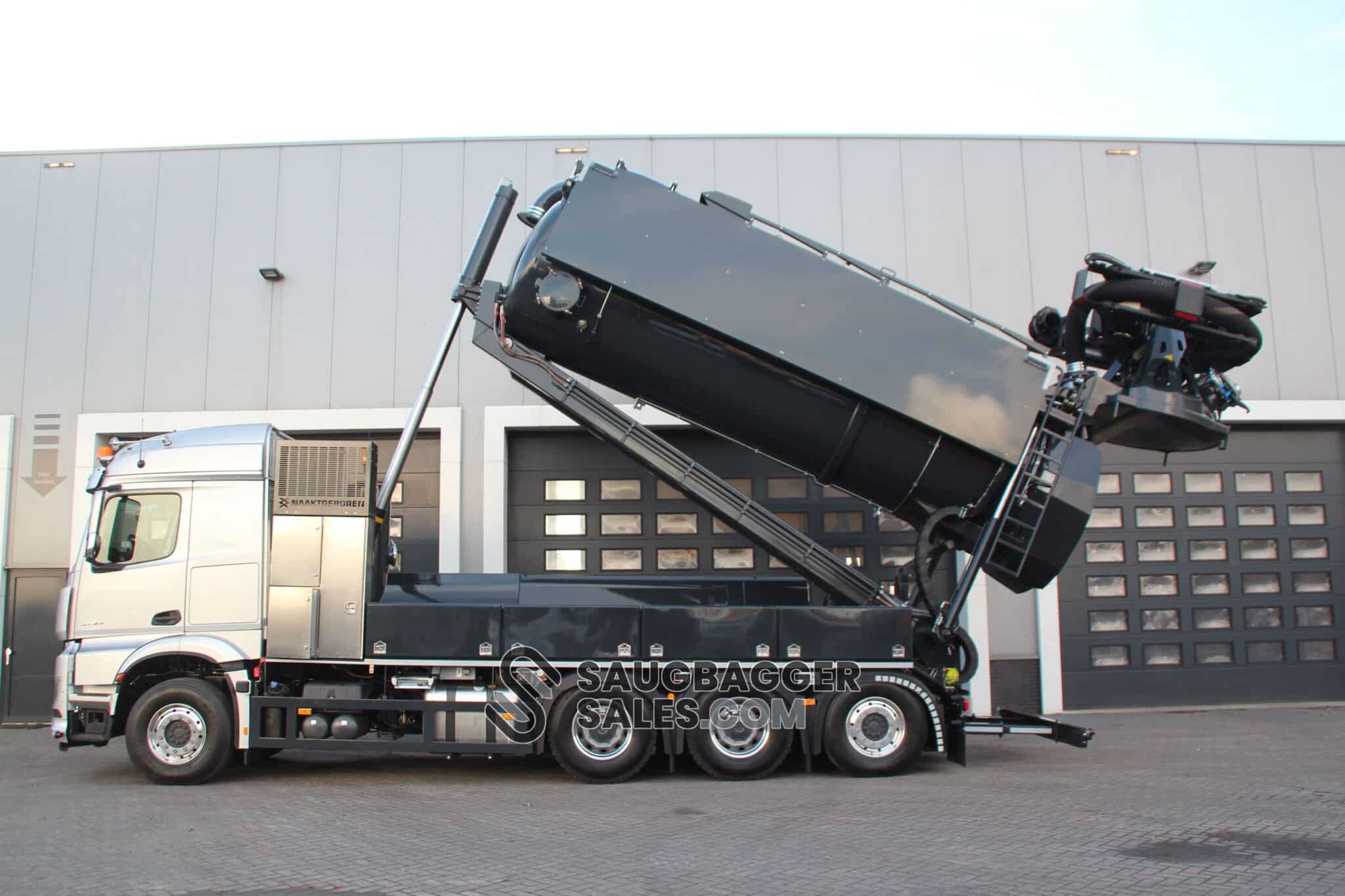

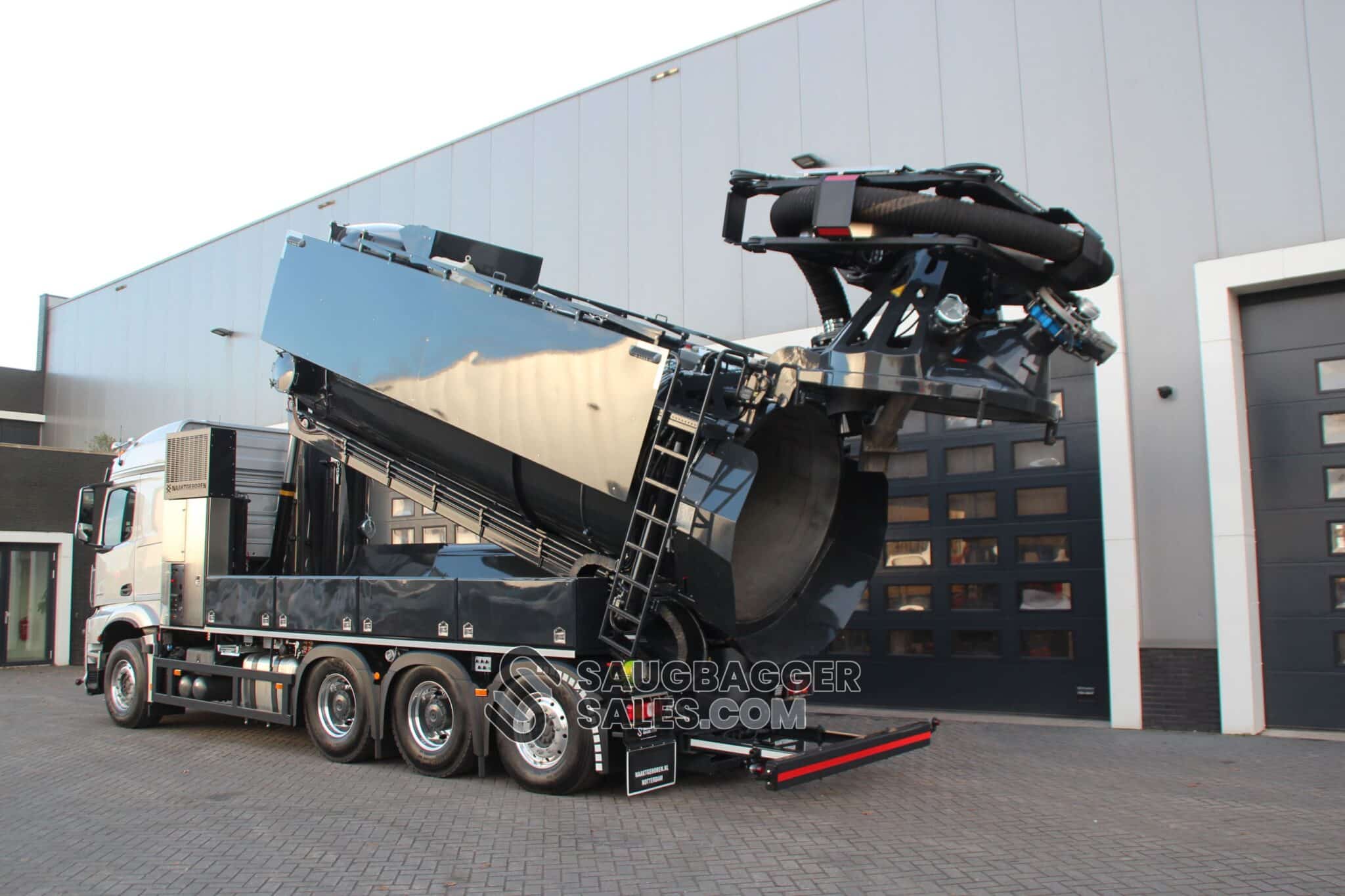

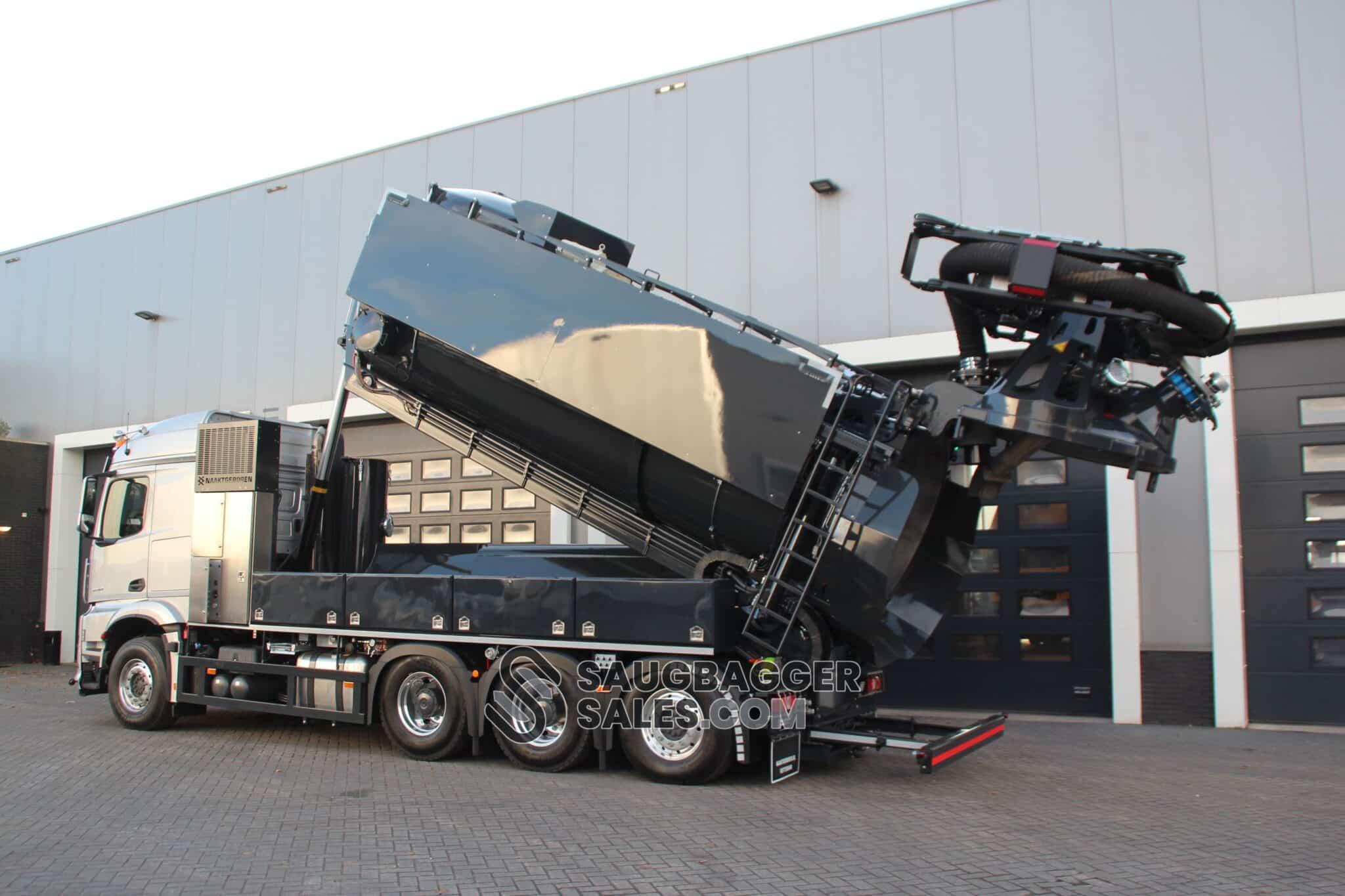

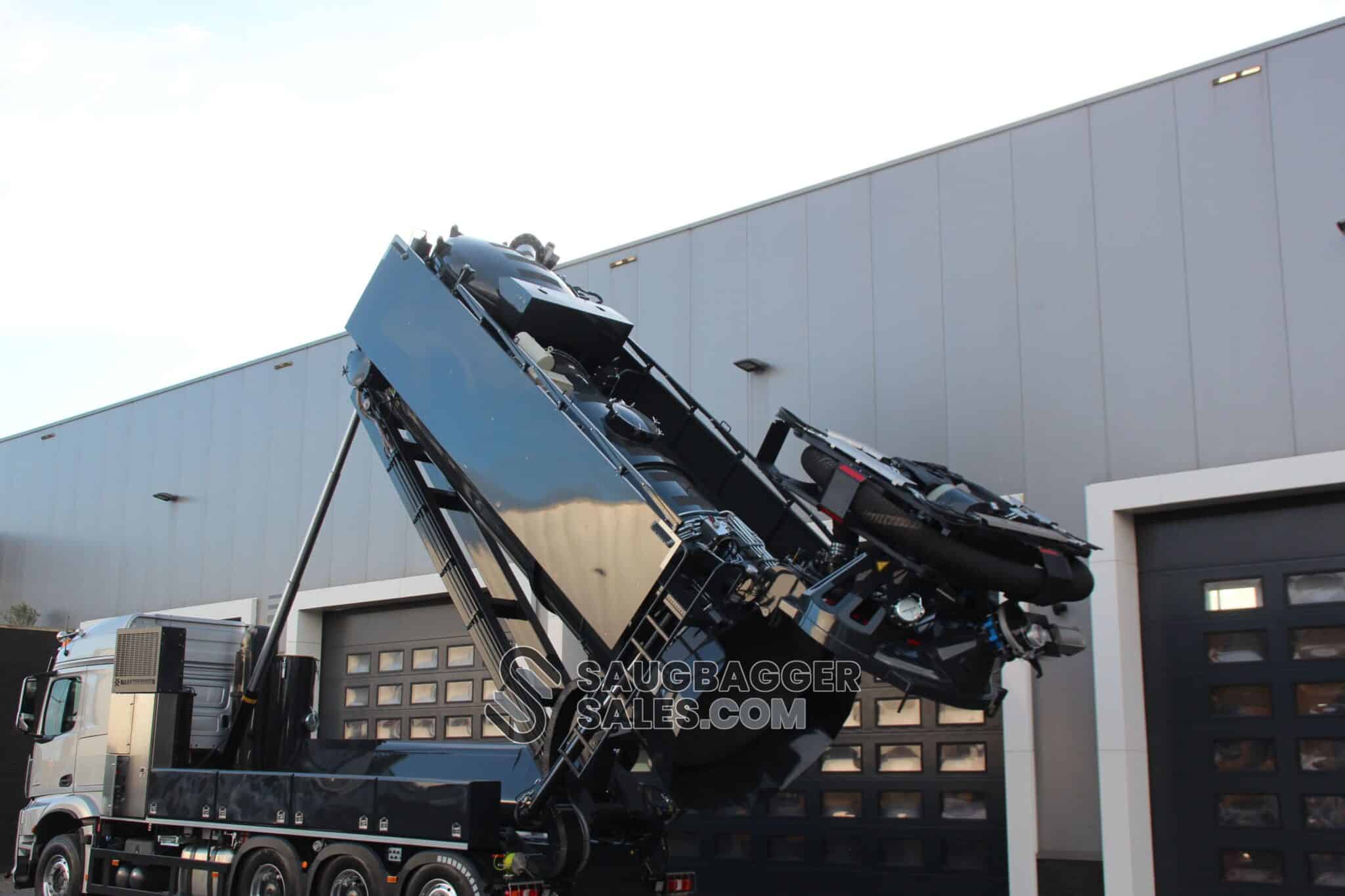

Hi-lift tipping system
-
Grounding cable
-
Two LED flashers at the rear of the vehicle
-

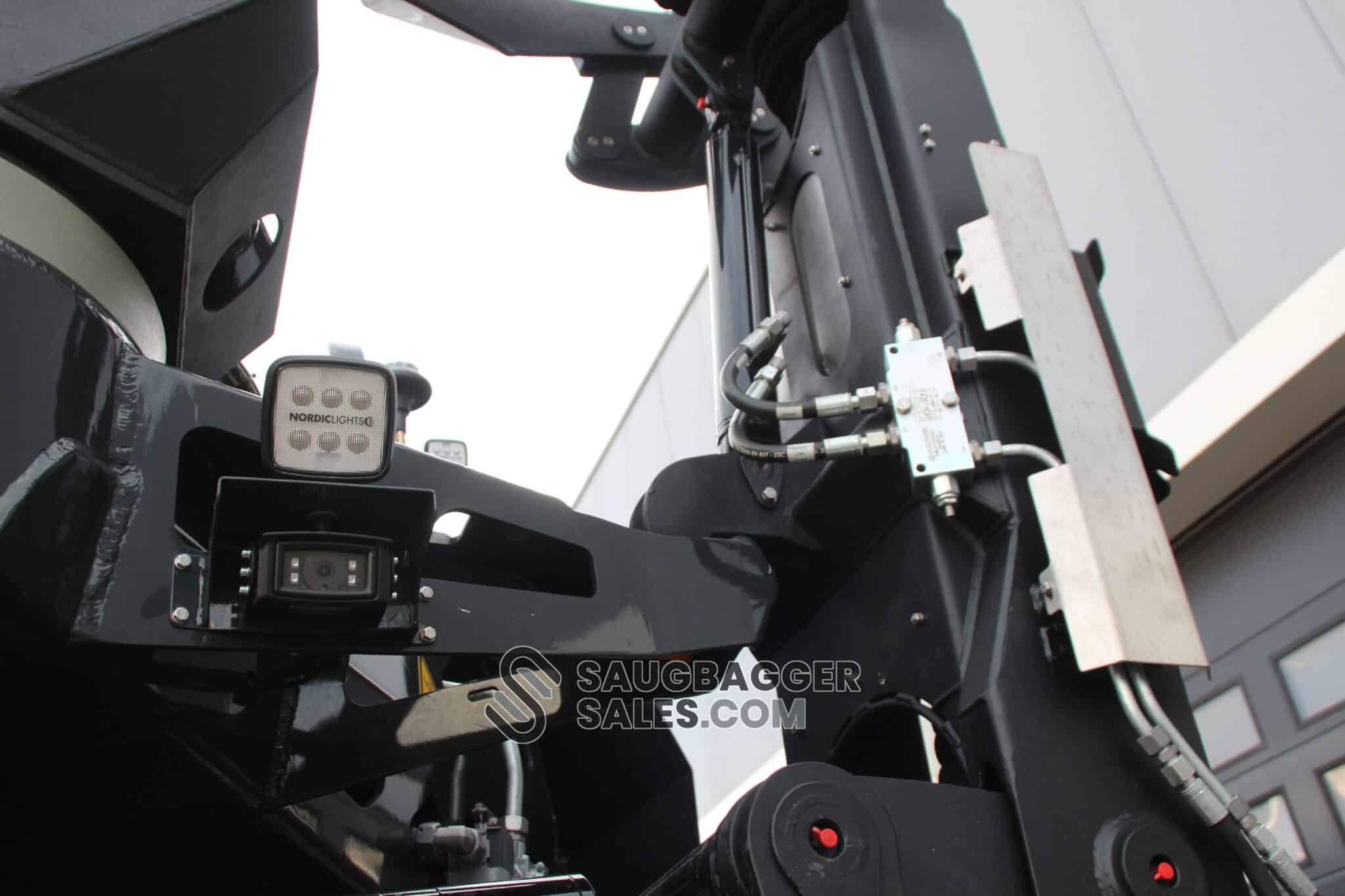

Two LED work lights on the suction arm
-
Reflective vehicle markings
-
Large advertising panels on the body
-
Sound-damping package
-
Big-Bag discharge system
-

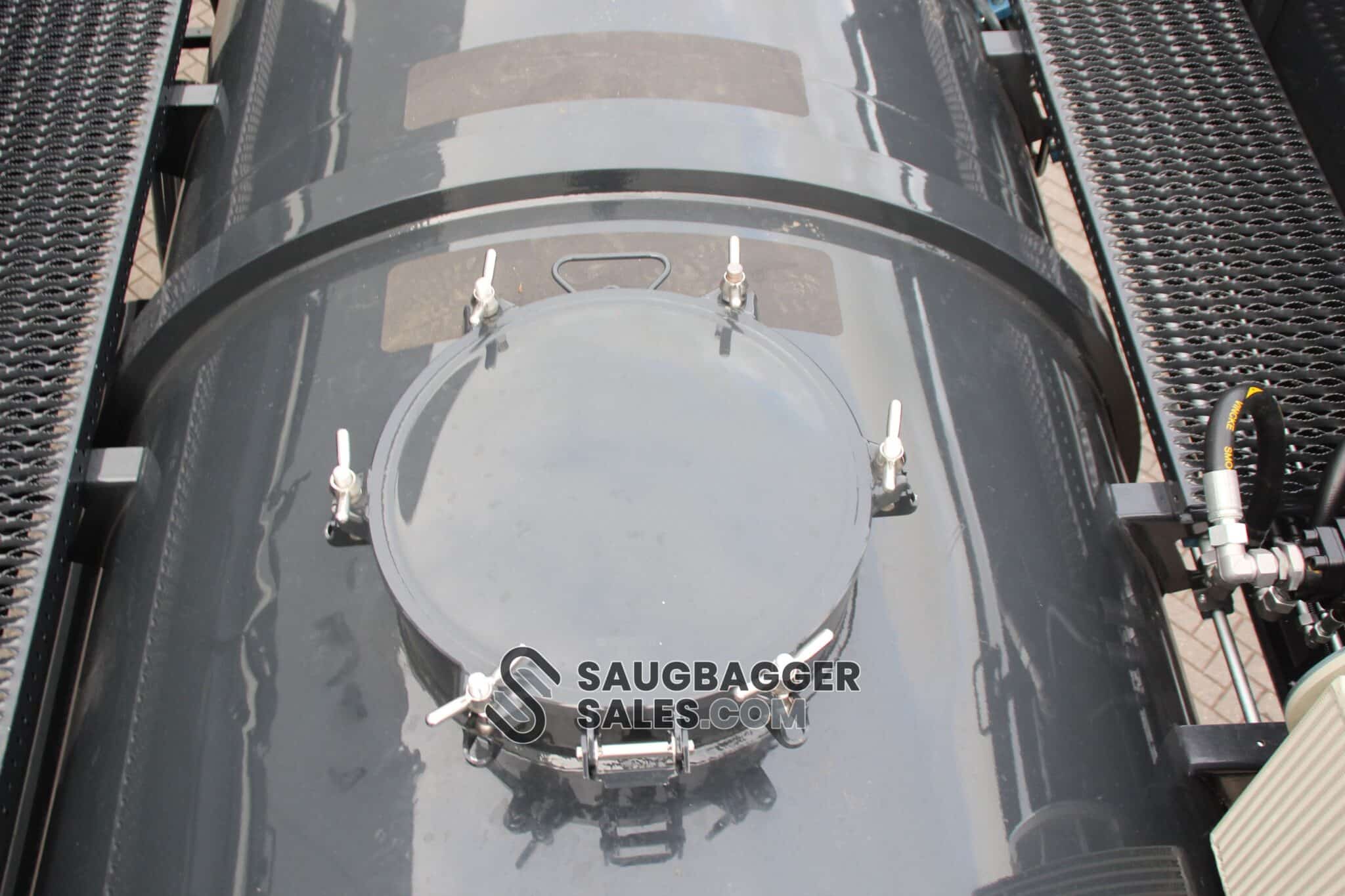

Manhole on top
-
Extra suction connection in the rear door
-

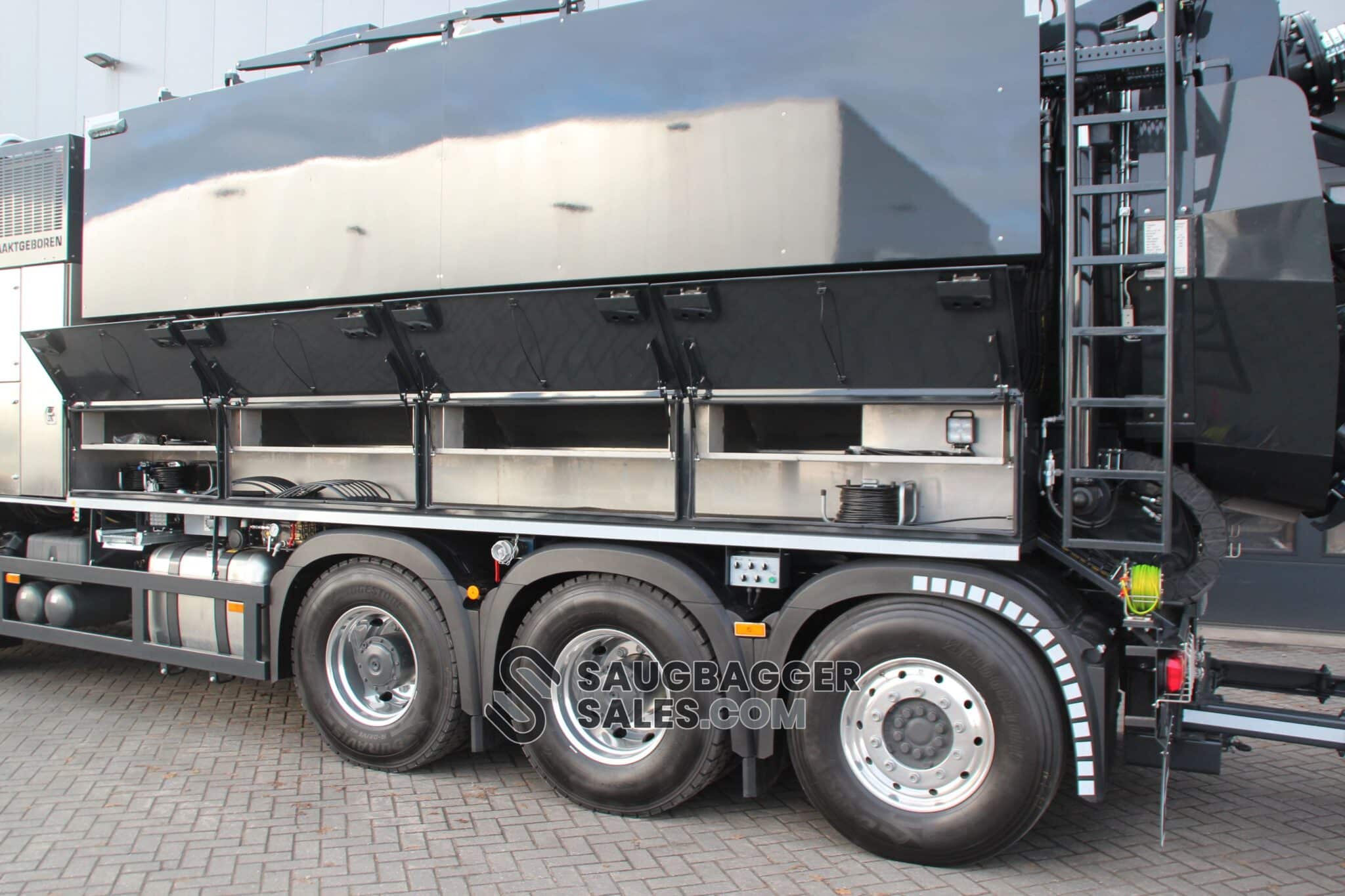

Toolboxes over the full left side
-
Six wide-beam LED work lights: 2 left, 2 right, 2 rear
-
LED work light on reel in toolbox
-
3.5-ton tow hitch
