NEW Amphitec Flex-Loader
- Amphitec Flex-Loader
- Suction of dry and liquid substances in a product tank of approx. 12 m³. Blowing of dry products.
With:

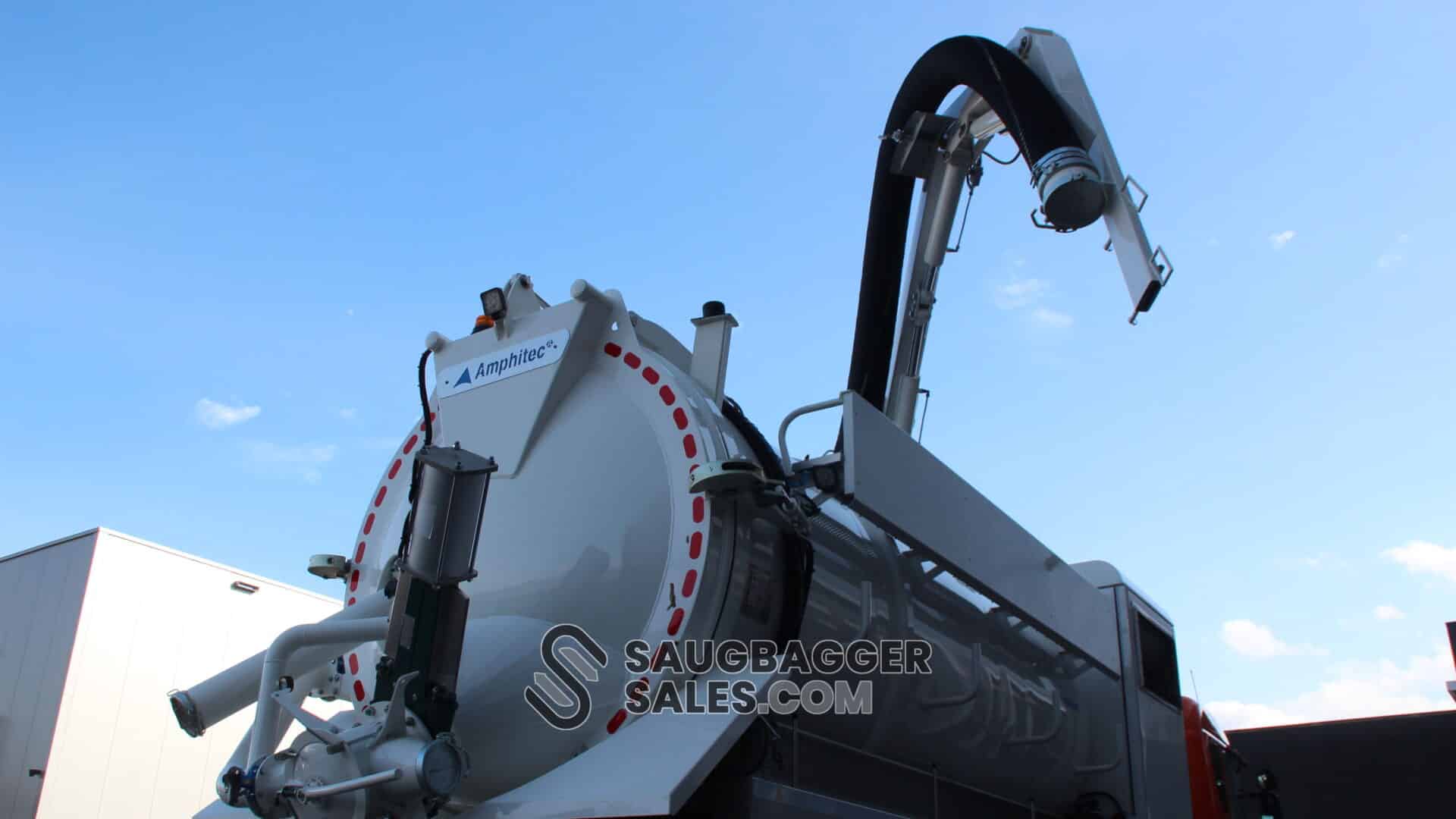

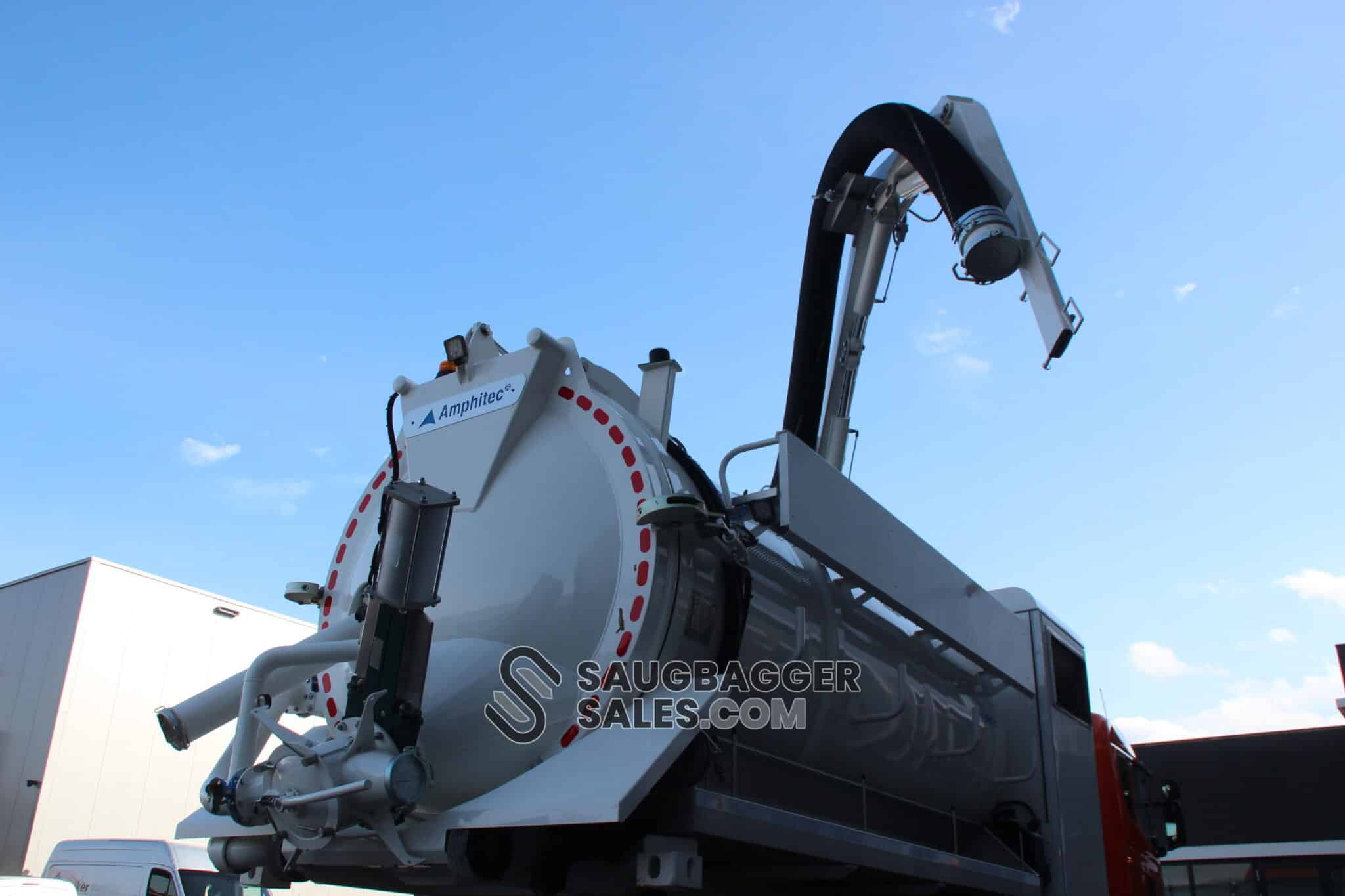

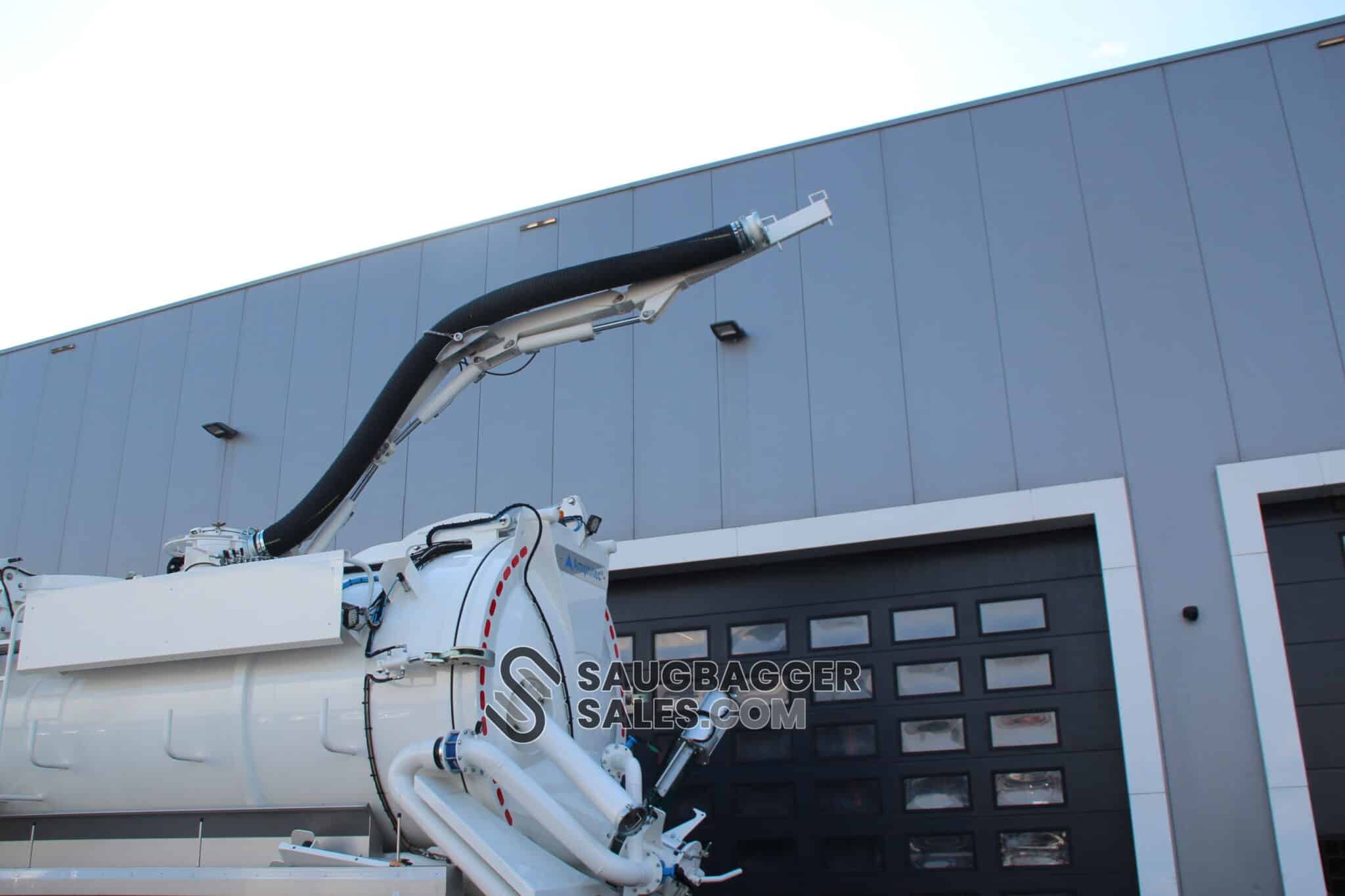

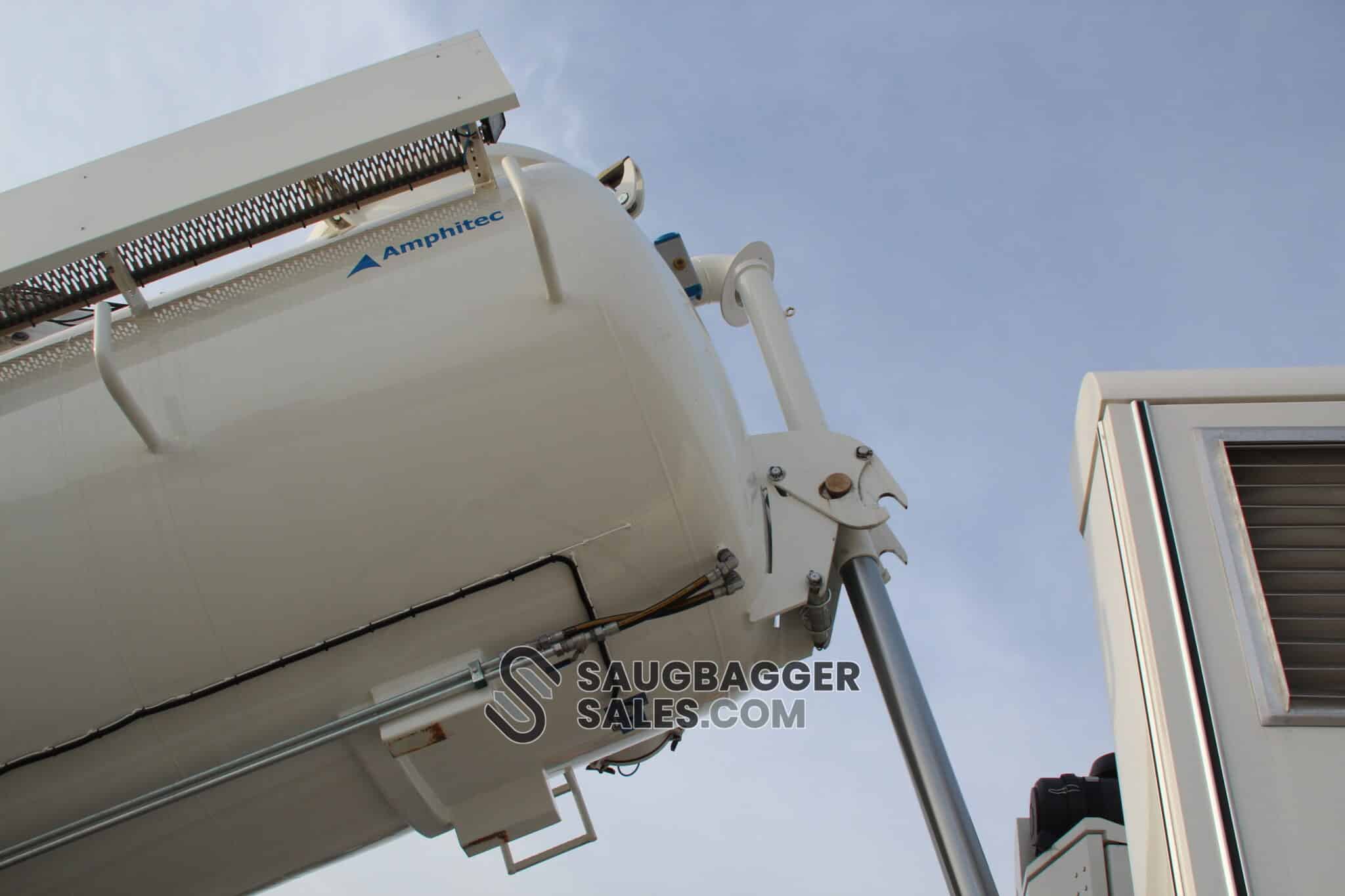

- Amphitec multi purpose boom with remote

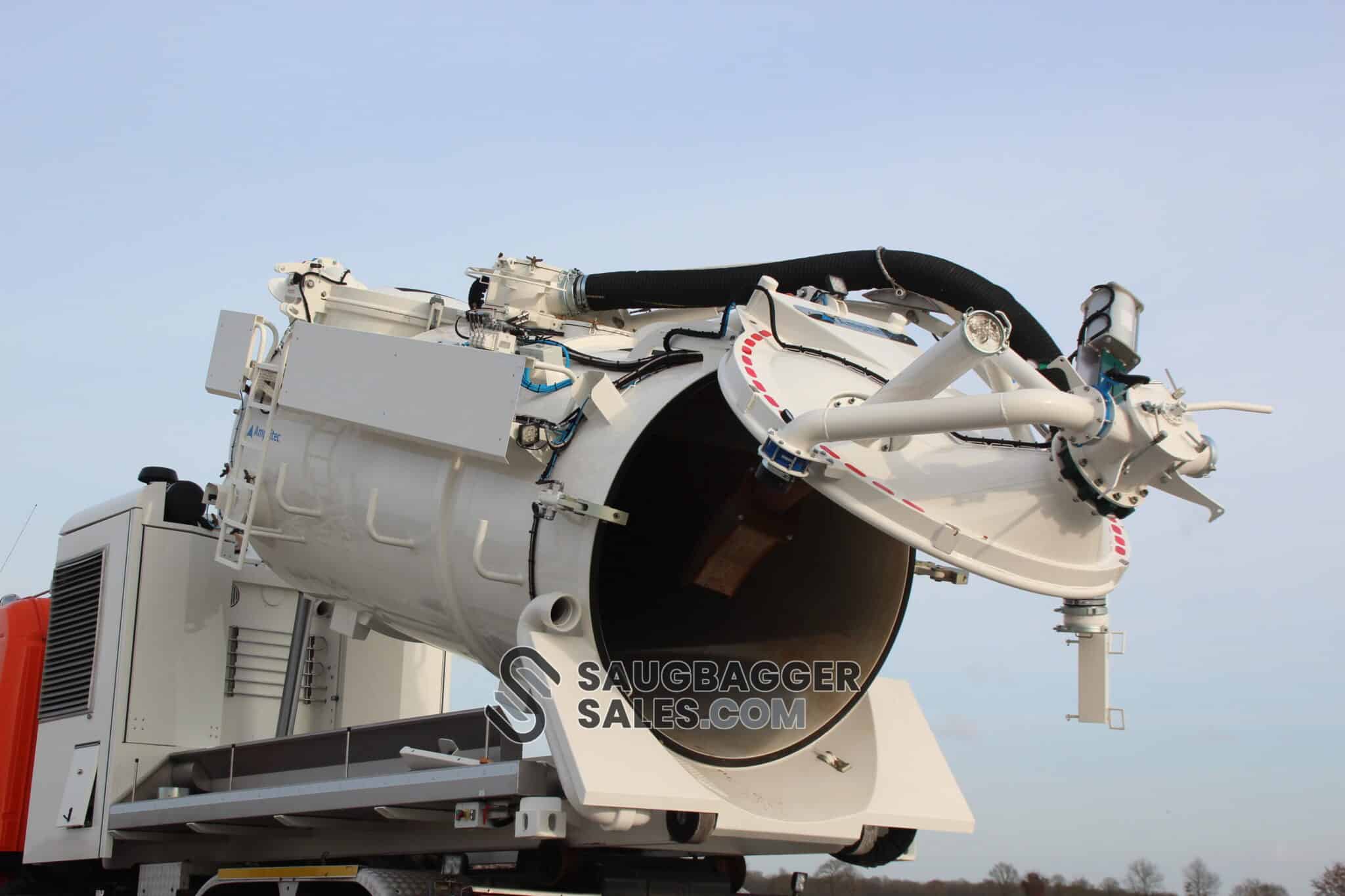

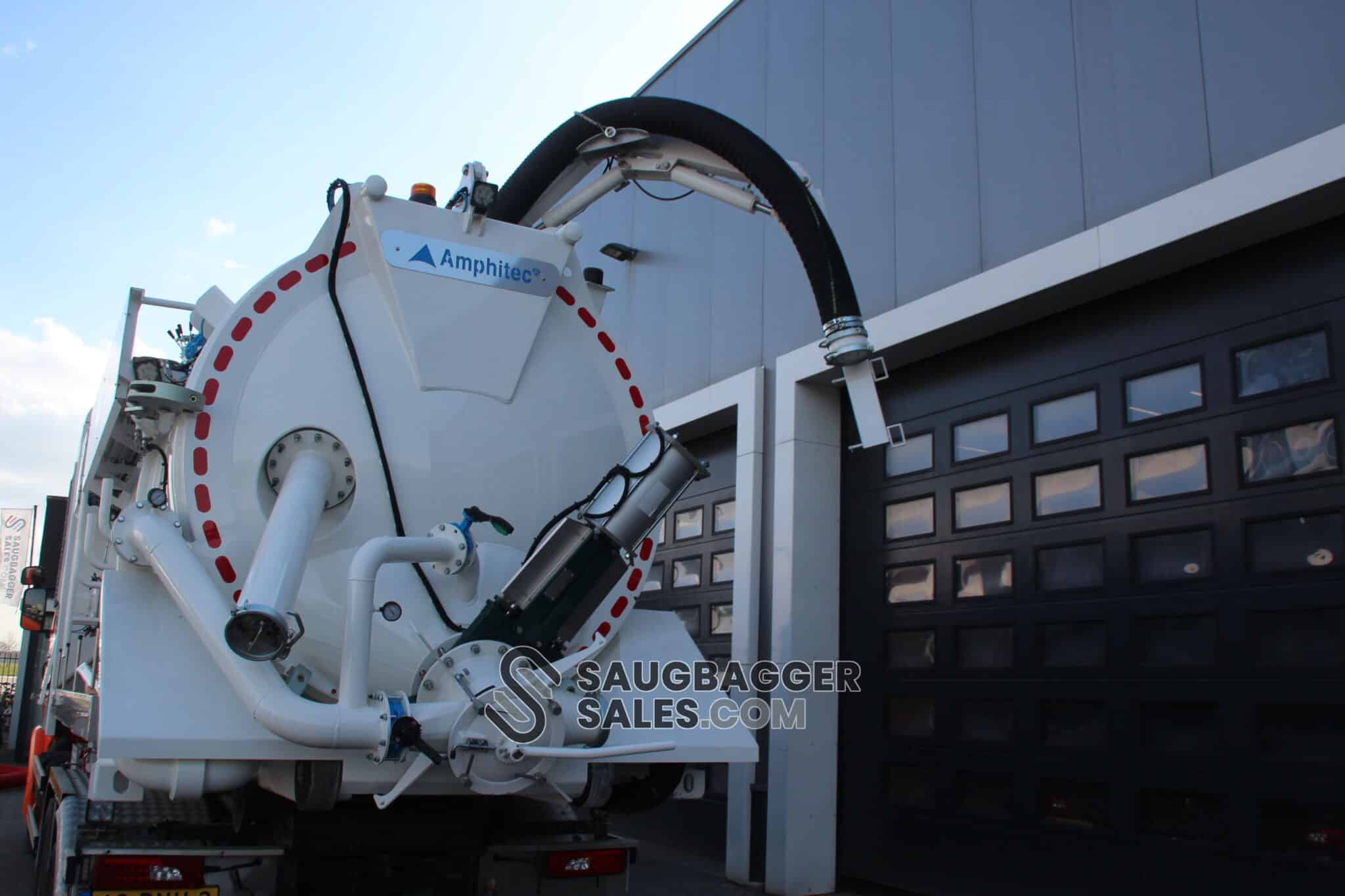

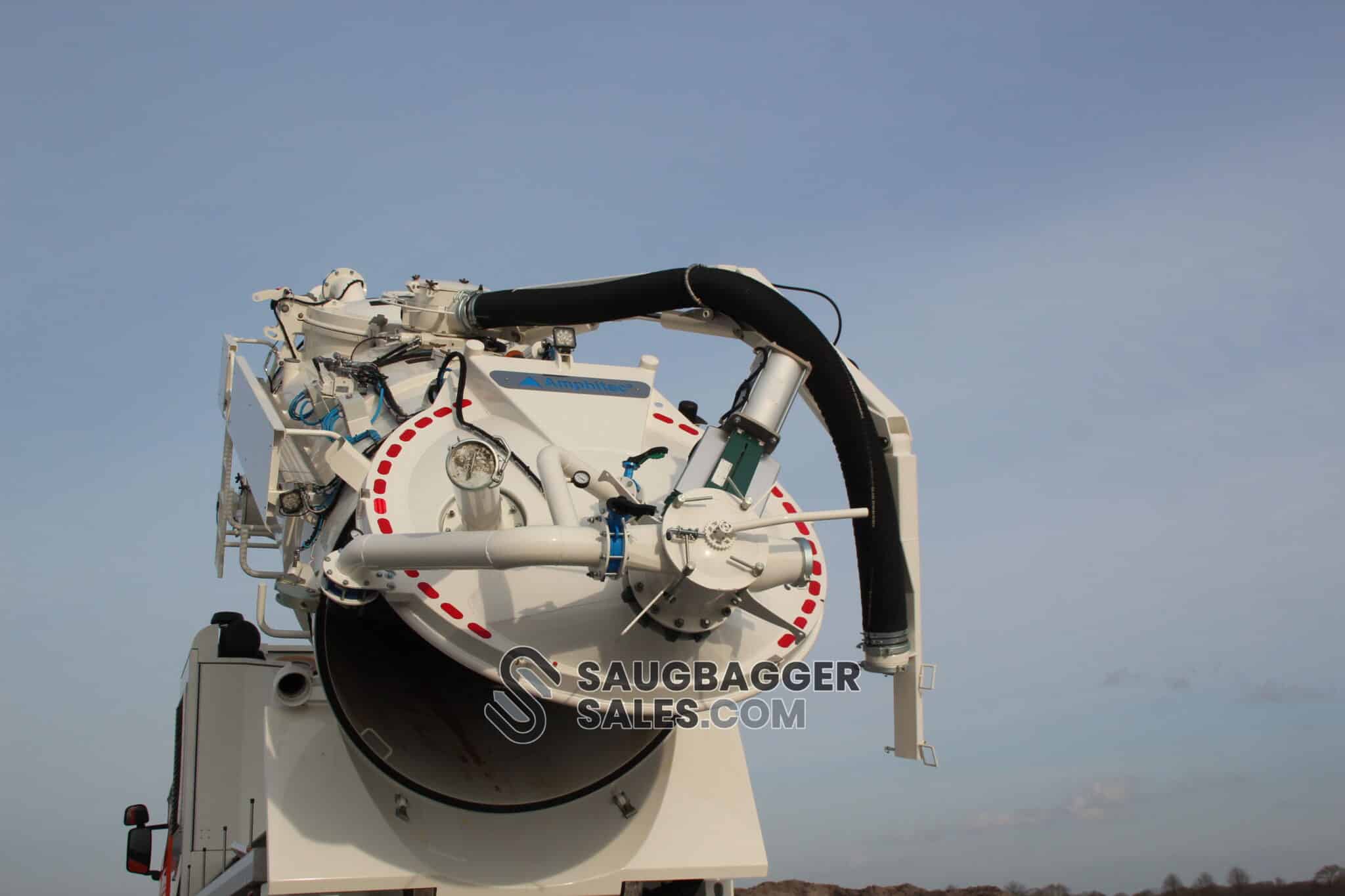

- Amphitec DN300 gate valve on the rear cover
- RVS tank
- Vortex Roots Blower 9000 m³/hour, 96% vacuum and an overpressure of 1 bar
- Roots blower powered by a Deutz diesel engine according to the latest emission directives EU Stage V

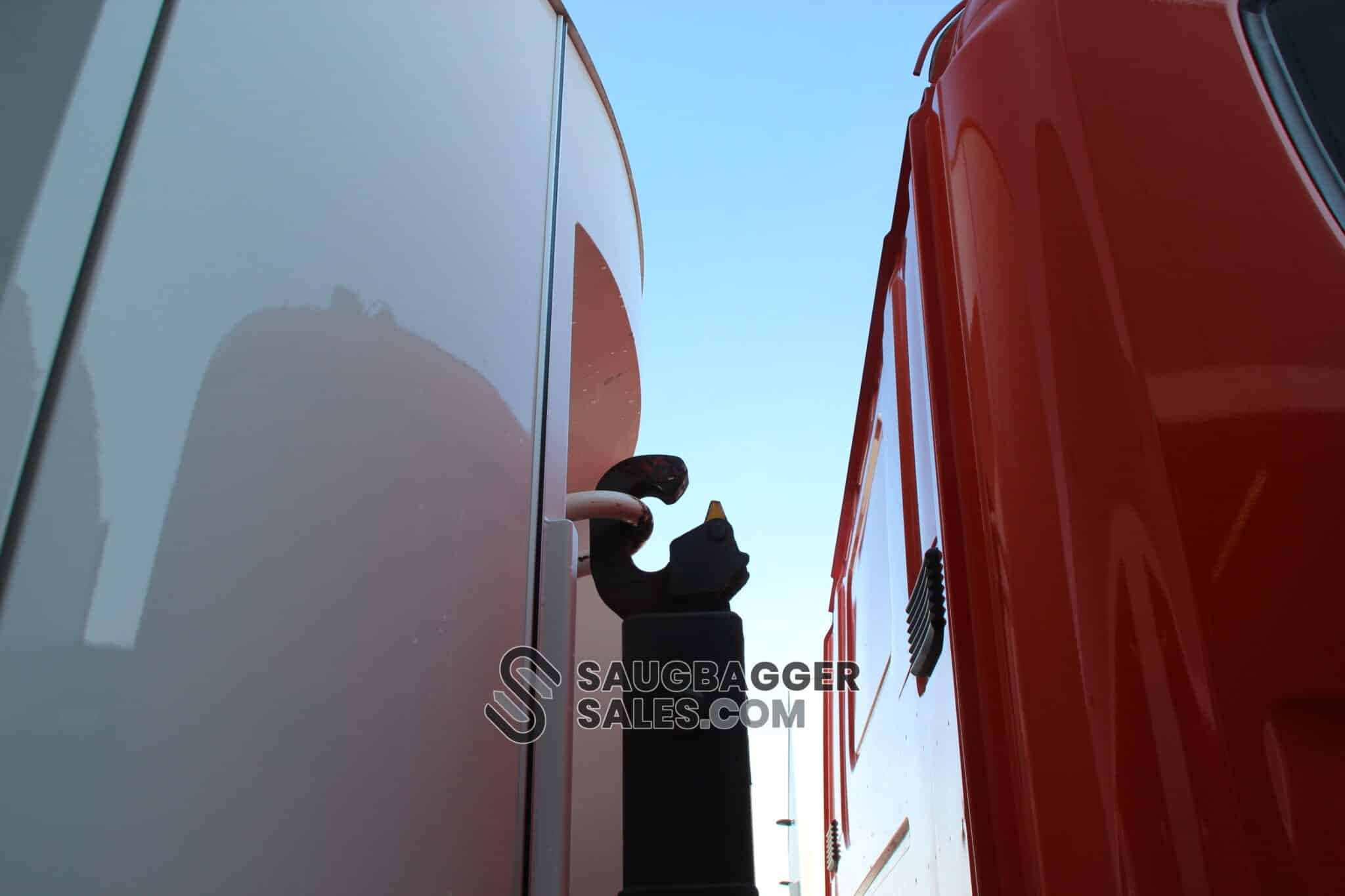

- Maximum flexibility thanks to 20 ft container frame system, an integrated hook arm frame and lifting eyes
- Large main filter system and a safety filter, thus fuel efficient
- Pressure-tight filter compartment for optimal blowing performance
- Fully opening machine compartment for optimal service and inspection
- 5-metre hose storage on both sides
- Easy to operate due to ergonomic controls
- Easy to maintain and operate
- Overall height of only 2. 500 mm for each hook arm truck
- Low overall weight of approx. 9,500 kg
Dimensions:
- Length : 6,900 mm
- Width : 2,500 mm
- Height : approx. 2,500

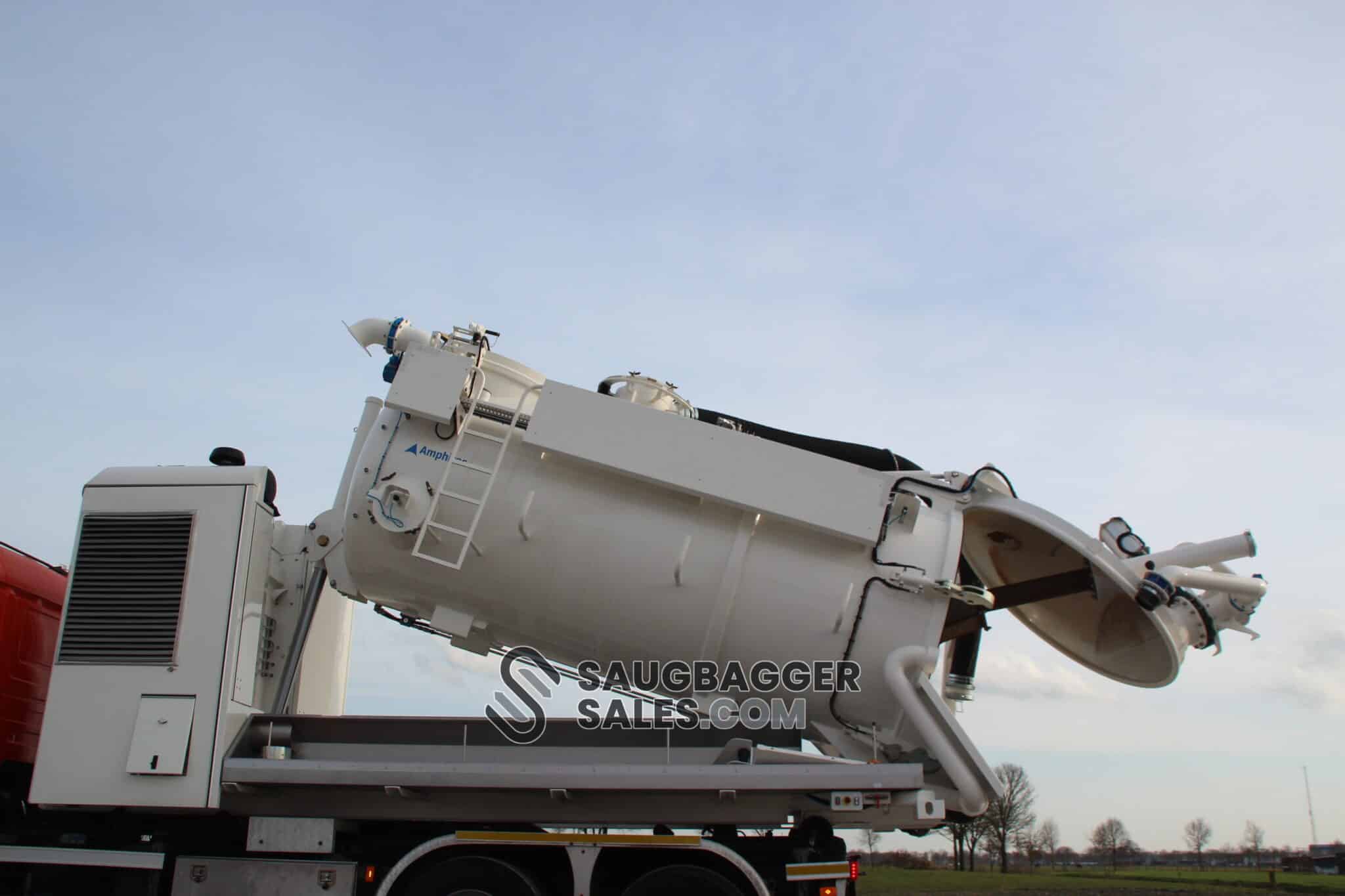

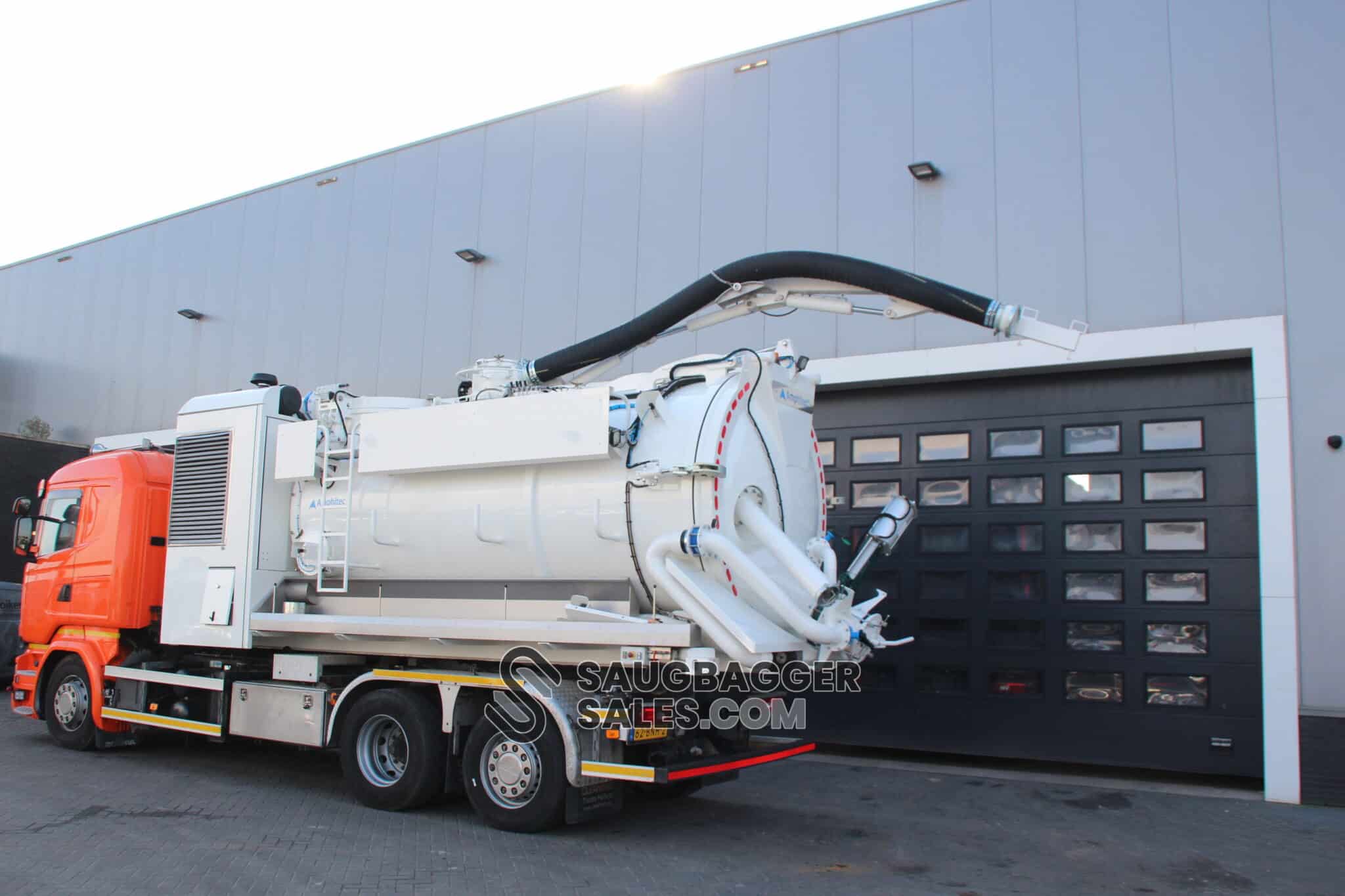

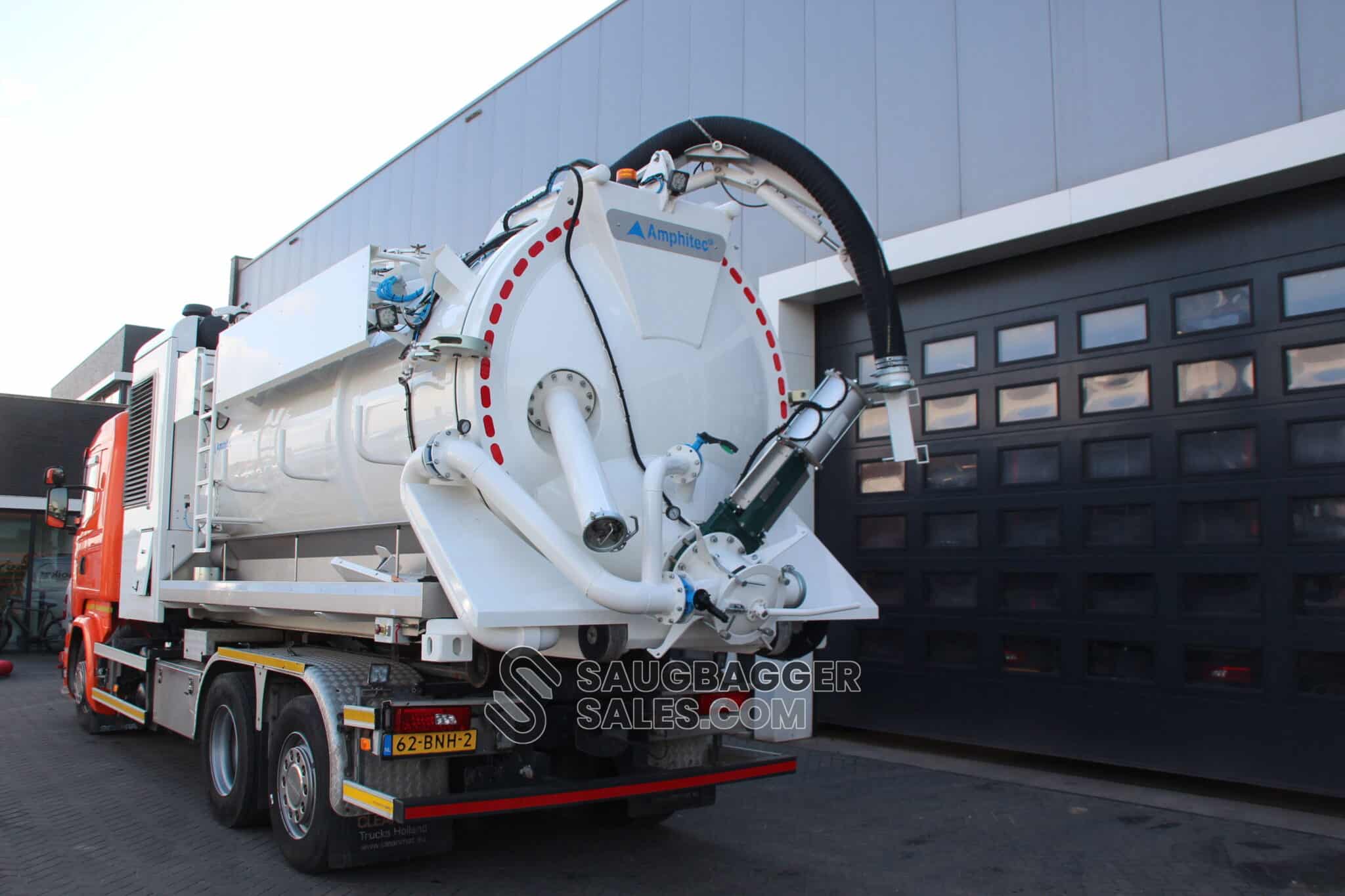

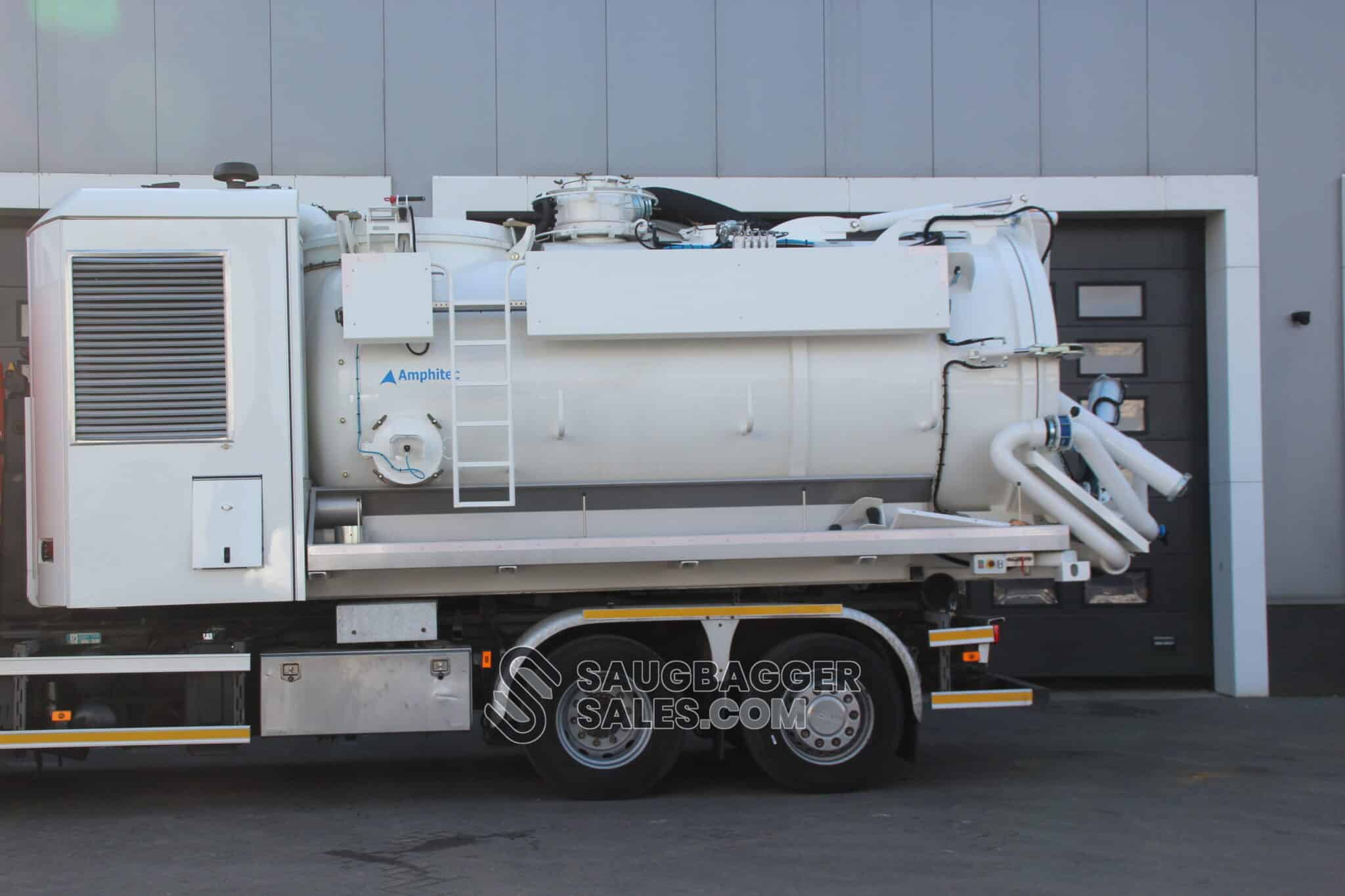

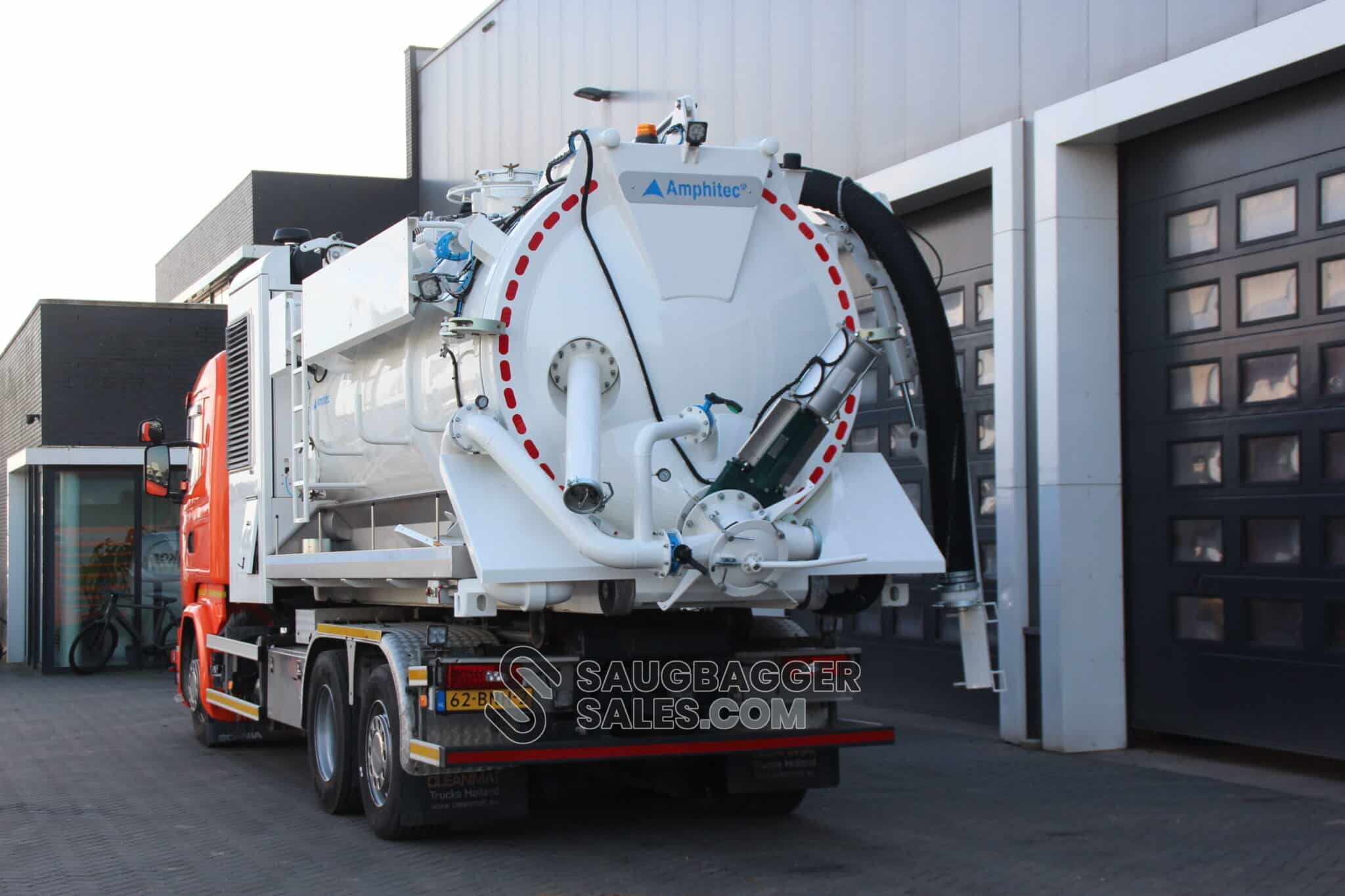

–Some photos are with chassis, the Flex-Loader is supplied as a separate unit–
